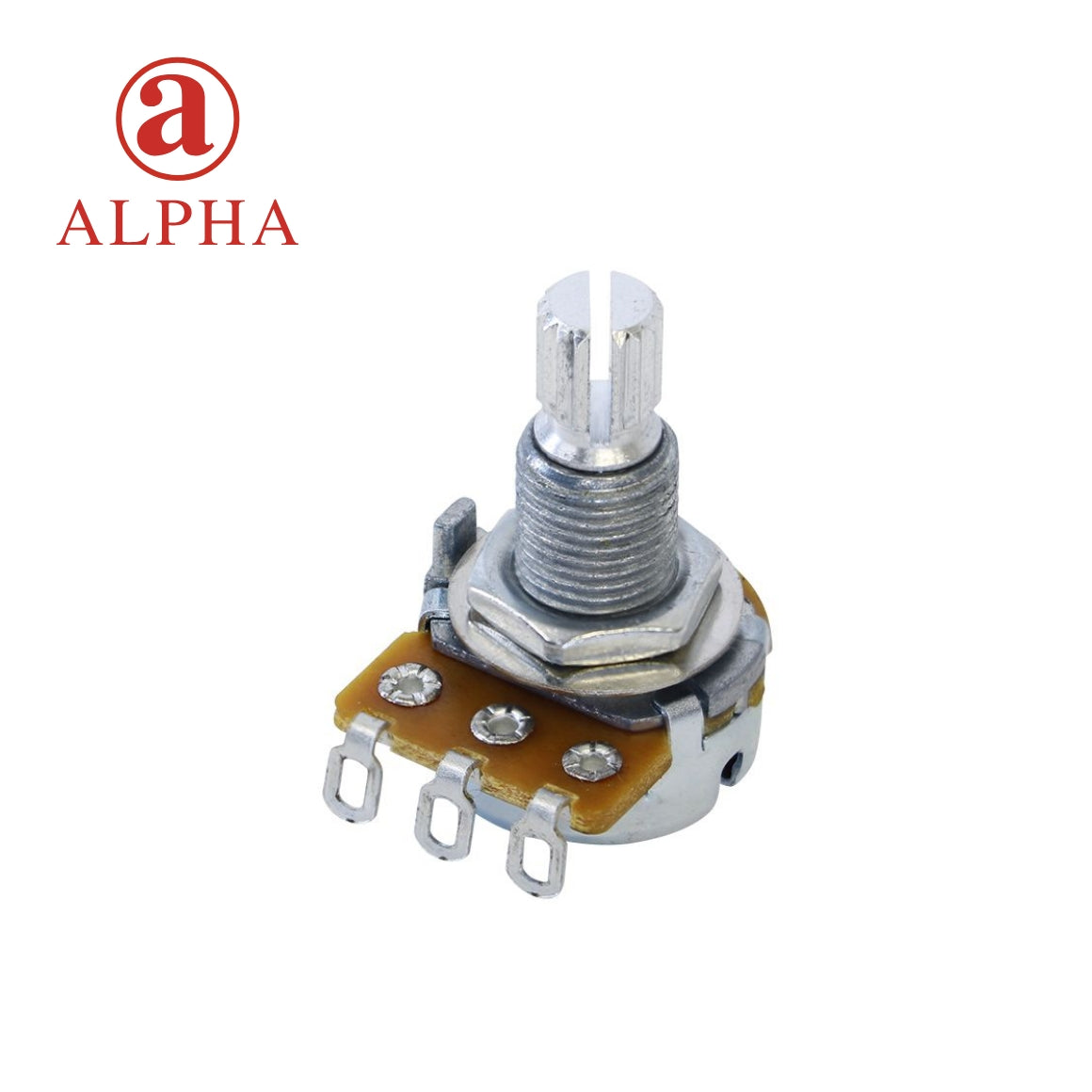

Alpha - Mini Audio Taper Pot - 16mm - Split-Shaft - 250K

Upgrade your compact or space-limited guitar build with the Alpha 16mm 250K Audio Taper Potentiometer. Designed for tight control cavities, this mini pot delivers the same smooth tone response and reliability as full-sized models, making it ideal for modern builds and smaller instruments.

Features and Benefits:

• Reliable Alpha build quality for long-lasting performance
• Smooth, consistent audio taper for natural tone adjustment
• 250K resistance value, perfect for single-coil pickups
• Standard M8 threaded collar and 6mm shaft diameter with 18 splines
• Standard 24mm body fits most control cavities
• Includes nut and washer for easy installation
• Made in Taiwan

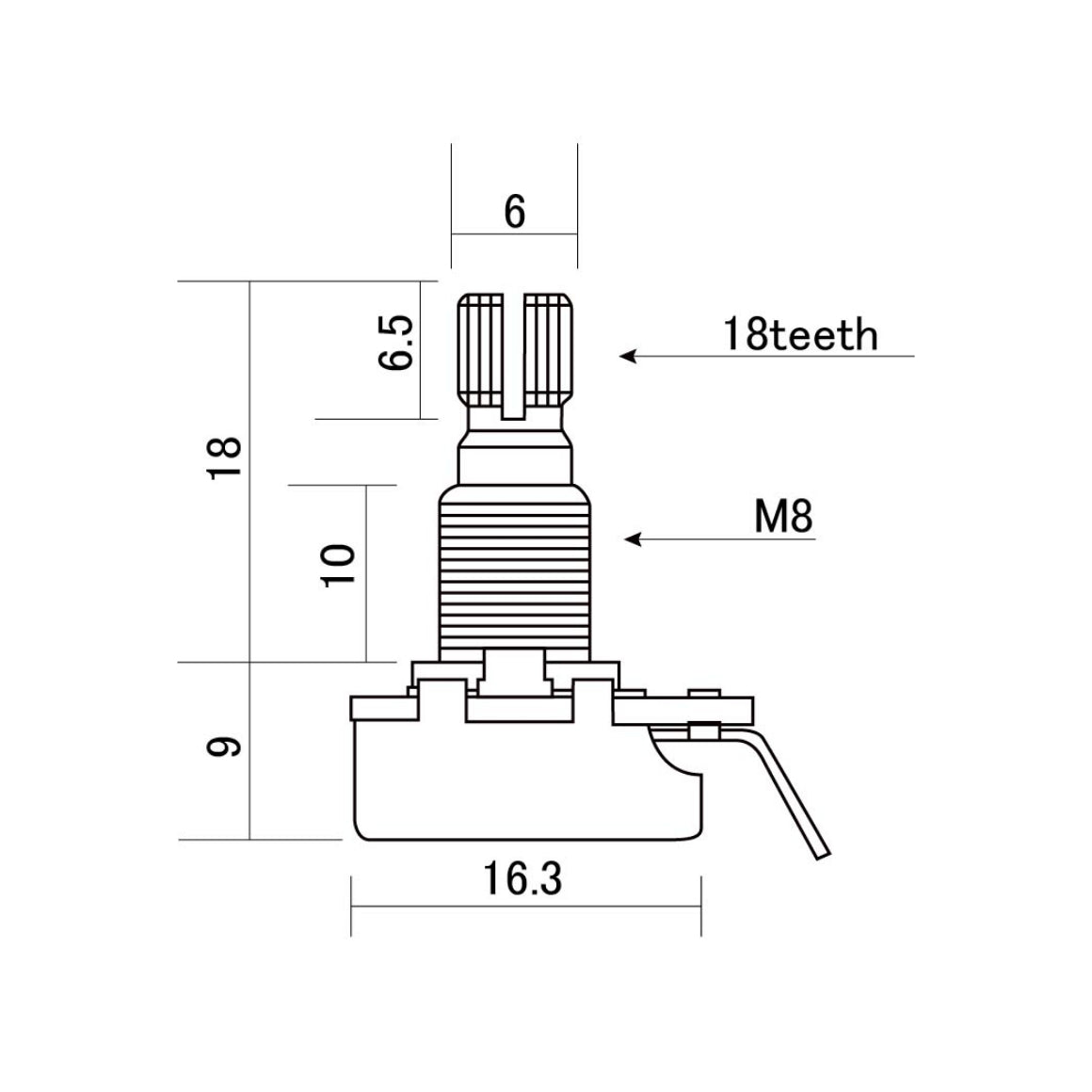

Specifications:

• Resistance: 250K Ω
• Taper: A type (audio taper)
• Thread height: 10 mm
•  Shaft height: 18 mm
•  Shaft diameter: 6 mm (18 splines)
•  Pot casing diameter: 16.3 mm
• Thread: M8
• Includes 1 nut and 1 washer

Compatibility:

Perfect for guitars and basses with limited cavity space or compact control layouts. Works great with single-coil pickups for smooth, natural tone control.

Tone Tip:

Use 250K pots with single coils for a warmer, smoother tone. For humbuckers, 500K pots are typically preferred for brighter highs.
