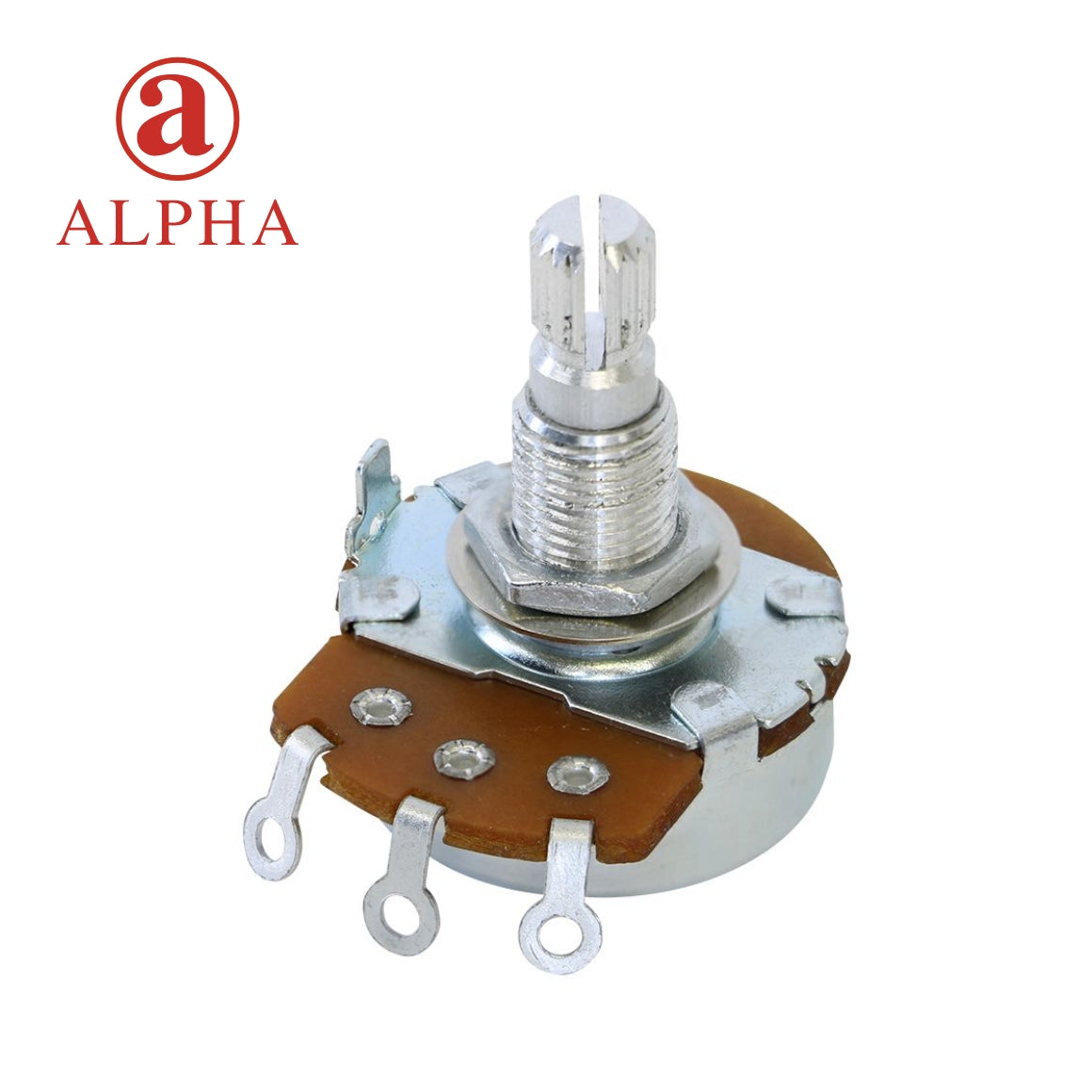

Alpha - Linear Taper Pot - 24mm - Split-Shaft - 500K

Upgrade your guitar’s tone control with this reliable Alpha 24mm 500K Linear Taper Potentiometer. Known for its smooth operation and consistent performance, Alpha pots are trusted by guitar builders and repair technicians worldwide. Ideal for single-coil pickups, this pot provides a warm, natural tone response with precise control.

Features and Benefits:

• Reliable Alpha build quality for long-lasting performance
• Smooth, consistent linear taper for natural tone adjustment
• 500K resistance value, perfect for single-coil pickups
• Standard M8 threaded collar and 6mm shaft diameter with 18 splines
• Standard 24mm body fits most control cavities
• Includes nut and washer for easy installation
• Made in Taiwan

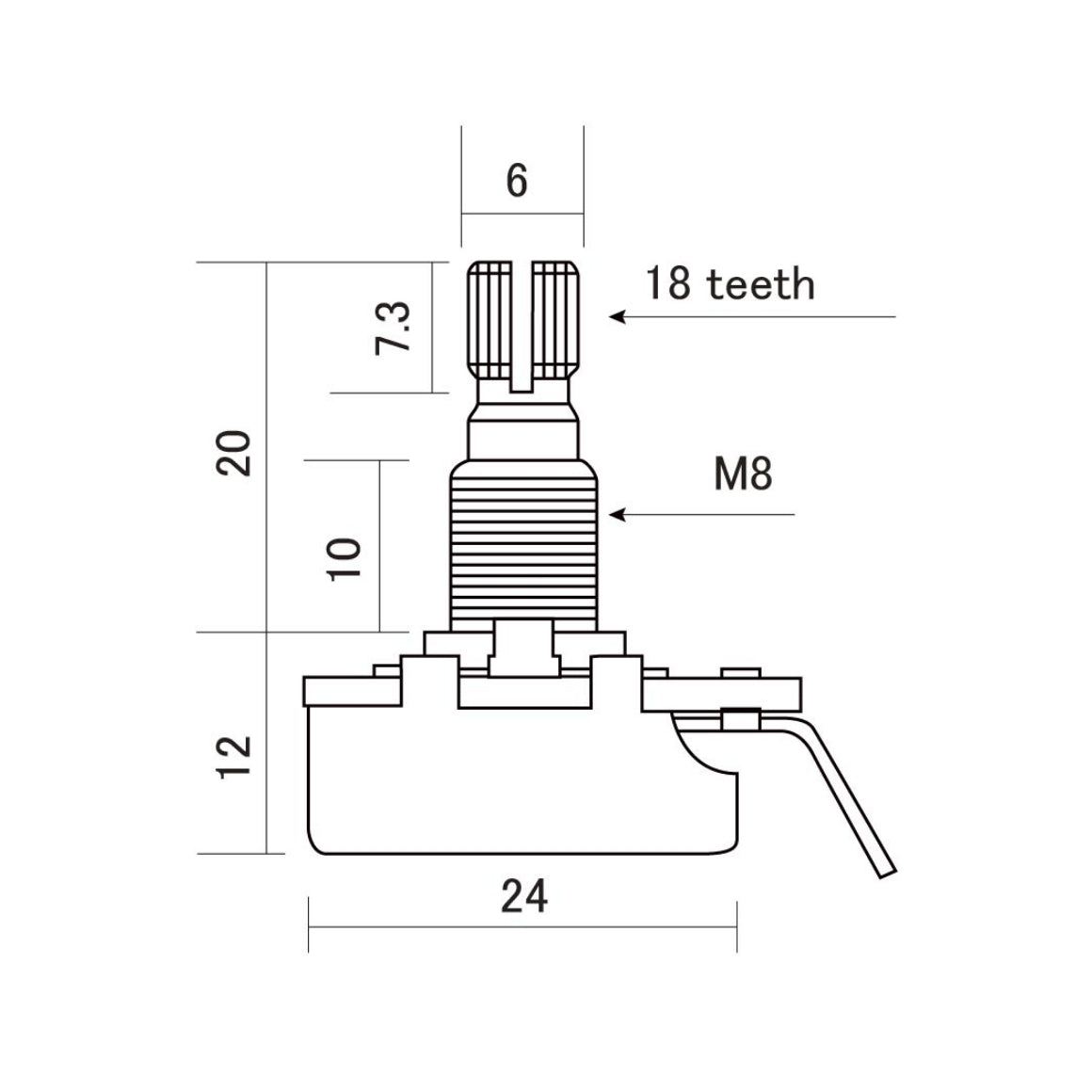

Specifications:

• Resistance: 500K Ω
• Taper: B type (linear taper)
• Thread height: 10 mm
•  Shaft height: 20 mm
•  Shaft diameter: 6 mm
•  Pot casing diameter: 24 mm
• Thread: M8
• Includes 1 nut and 1 washer

Compatibility:

Designed for metric-sized control knobs, this Alpha pot fits most imported guitars and basses. Ideal for humbucker-equipped guitars or those needing a brighter, more open tone.

Tone Tip:

Use 250K pots with single coils for a warmer, smoother tone. For humbuckers, 500K pots are typically preferred for brighter highs.
