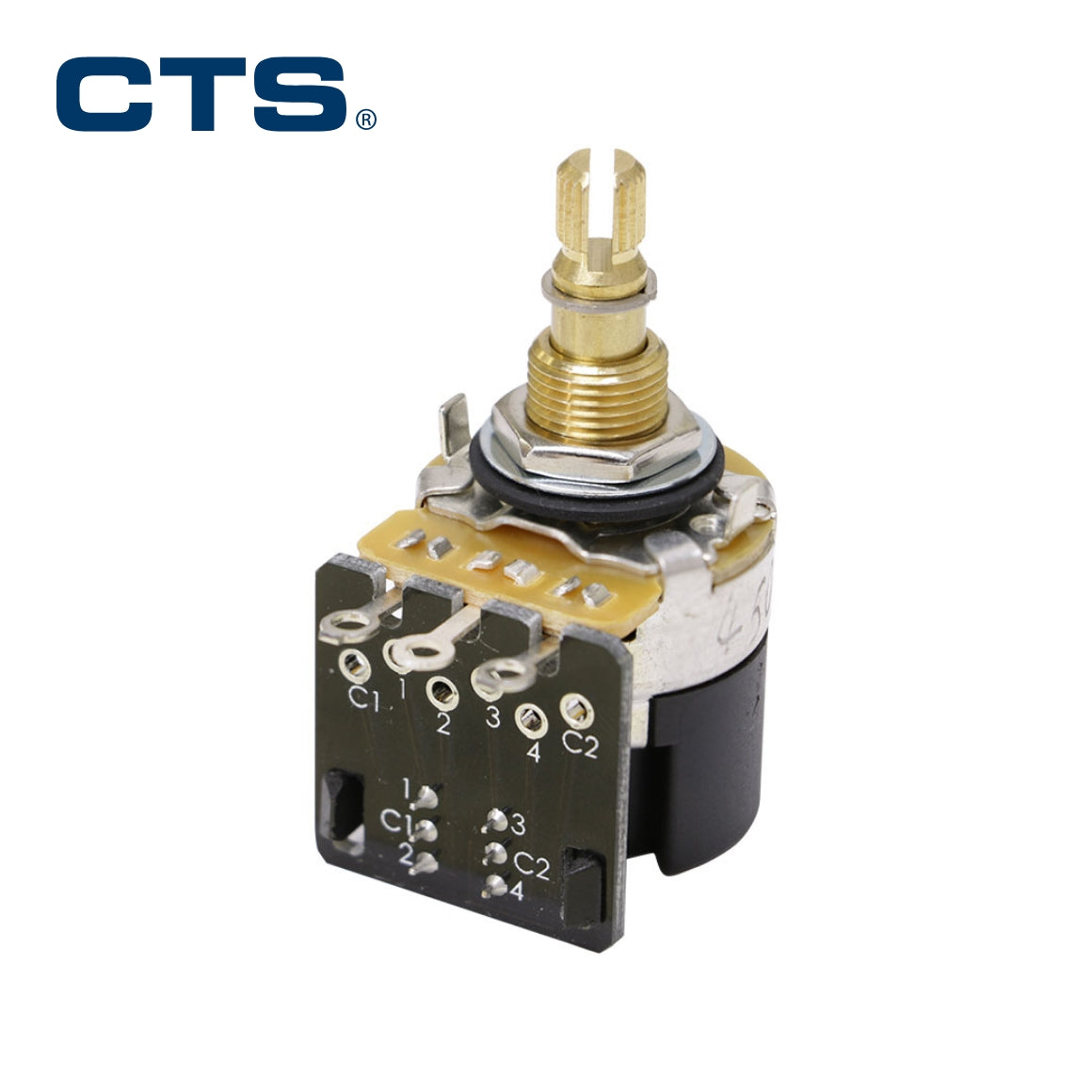

CTS - Audio Taper Push Pull Pot - Standard Split-Shaft - 250K

Upgrade your wiring setup with this premium CTS 250K push-pull DPDT potentiometer. Combining smooth tone control with reliable switching, this pot is perfect for adding coil splits, phase switches, or series/parallel options without drilling extra holes. Built for precision and durability, it delivers consistent performance trusted by professional guitar builders worldwide.

Features and Benefits:

• Precision CTS is built for long-lasting reliability
• Smooth and accurate audio taper for natural tone control response
• 250K resistance value, ideal for single-coil pickups
• DPDT push-pull switch for added wiring flexibility
• Regular (inch) split shaft design compatible with most USA-sized knobs
• Durable brass split shaft with 24 fine splines
• Tight resistance tolerance for consistent performance

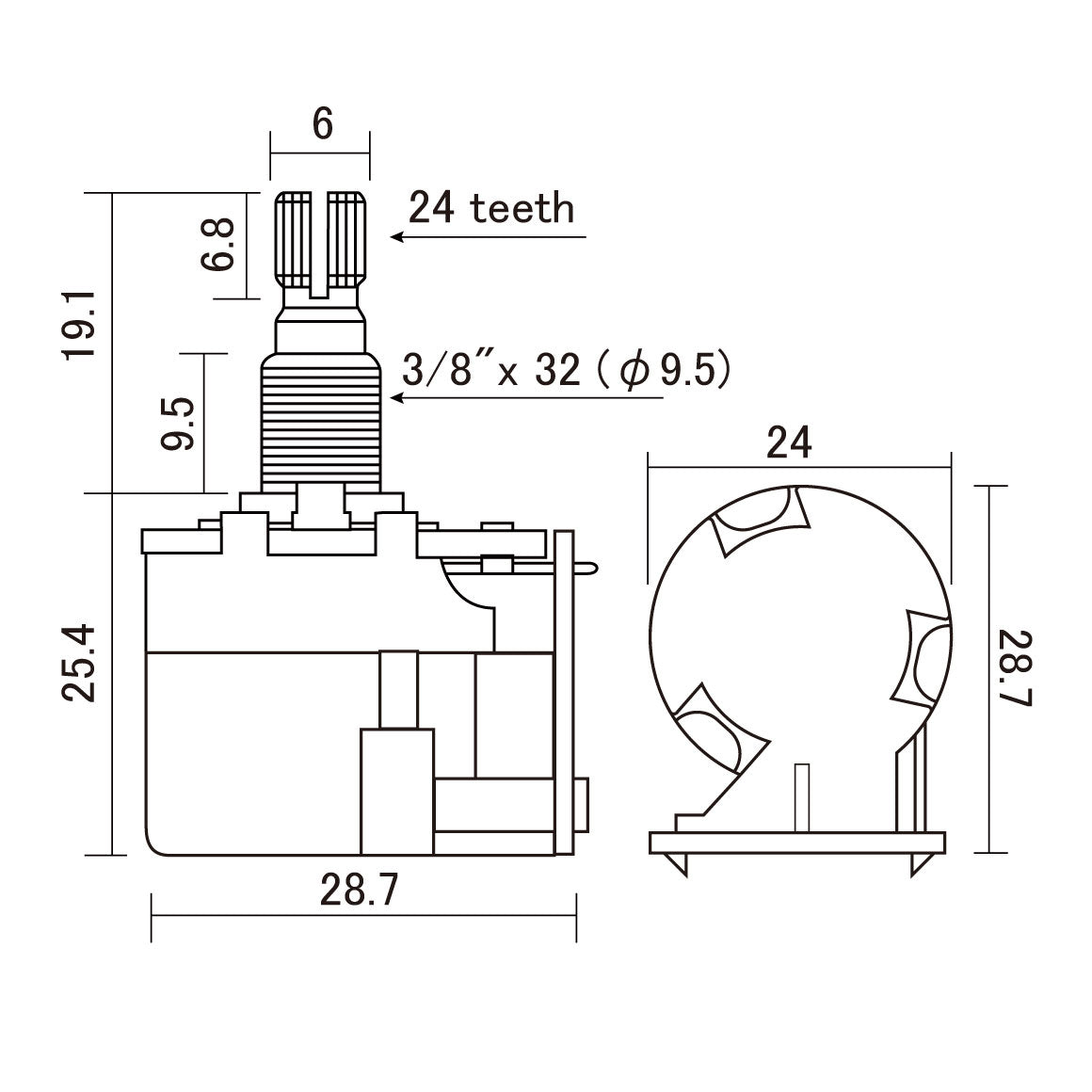

Specifications:

• Resistance: 250K Ω
• Taper: A type (audio taper)
• Switch type: DPDT (double pole, double throw)
• Thread height: 9.5 mm
• Shaft height: 19.1 mm
• Shaft diameter: 6 mm
• Pot casing diameter: 24 mm
• Thread: USA spec 3/8” x 32 brass thread collar
• Includes nut, dress washer, and lock washer

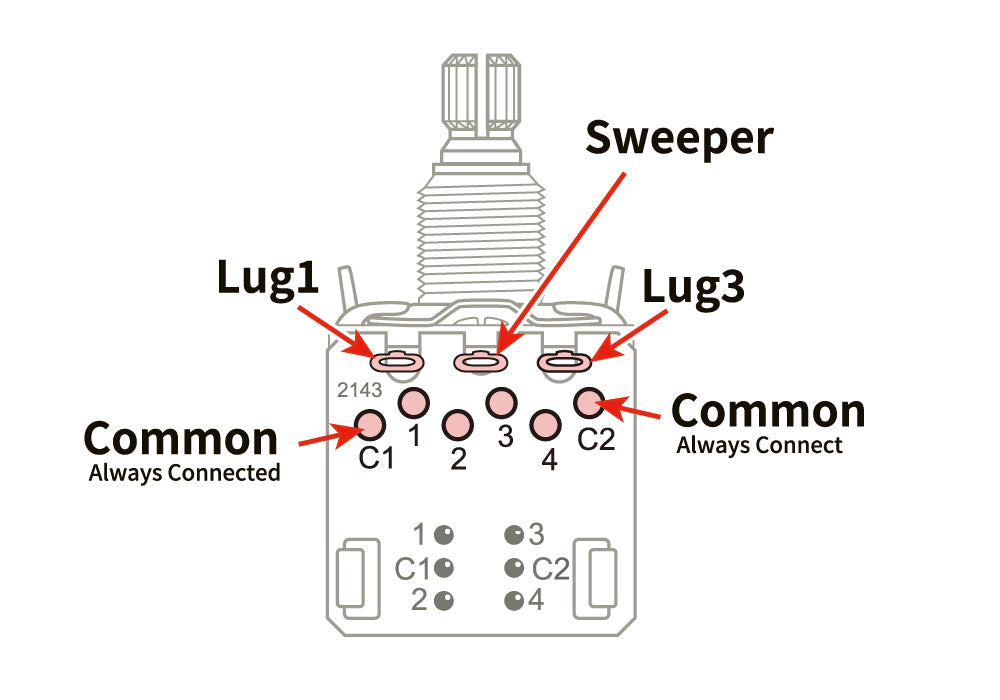

Switching Function

When pushed down: the selector engages the lower 4 lugs (B-C-E-F)

• C1 connects to 2
• C2 connects to 4

When pulled up: selector engages the upper 4 lugs (A-B-D-E)

• C1 connects to 1
• C2 connects to 3

C1 and C2 remain connected in both positions.

Compatibility:

This CTS pot is designed for inch-sized control knobs and fits most USA-made guitars. Perfect for Stratocaster®, Telecaster®, and other guitars equipped with single-coil pickups.

Tone Tip:

Use 250K pots with single coils for a warmer, smoother tone. For humbuckers, 500K pots are typically preferred for brighter highs.
