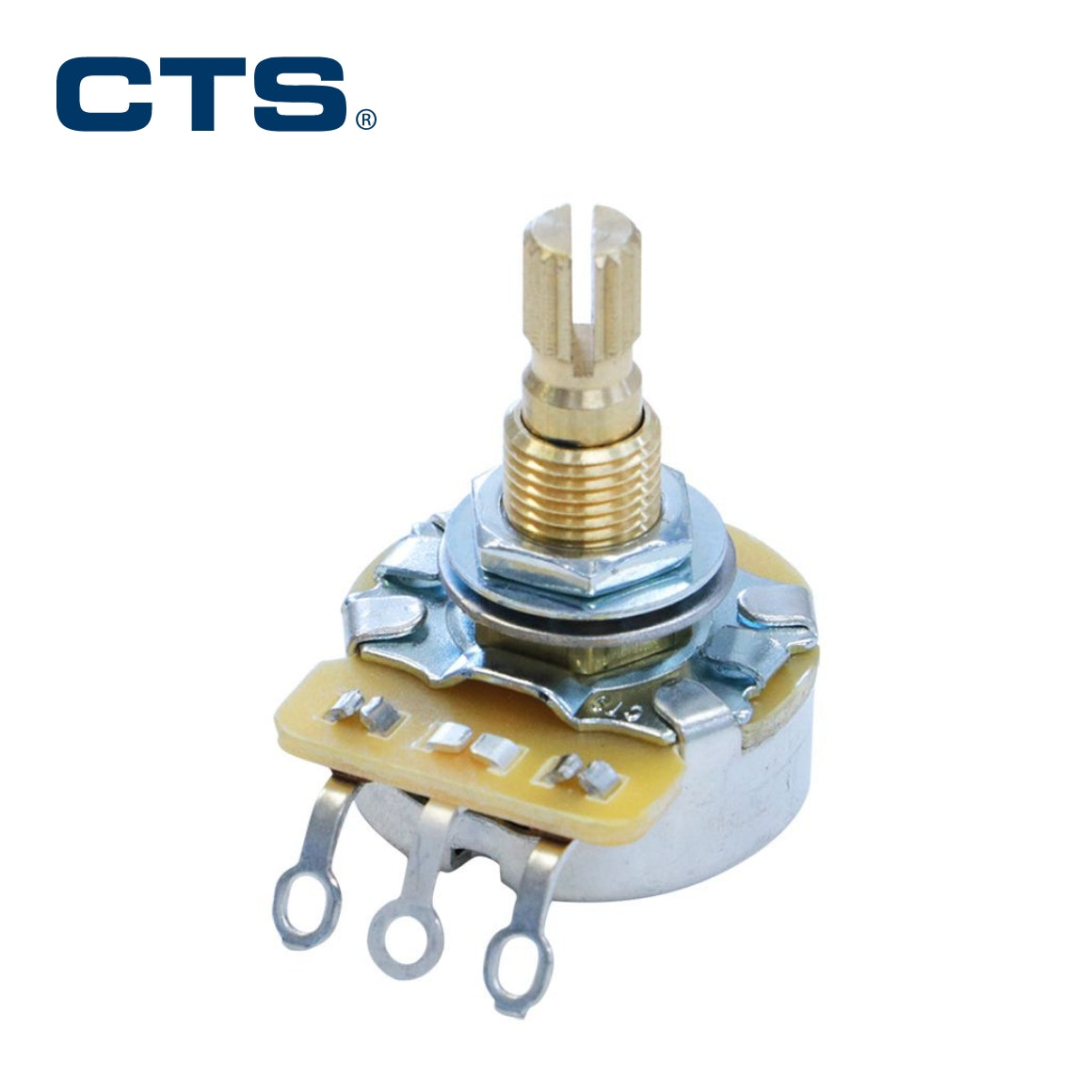

CTS - Precision Audio Taper Pot - Metric - Standard Split-Shaft - 500K

Upgrade your guitar with this high-quality CTS 500K audio taper potentiometer (Metric size). Designed for smooth, precise volume and tone control, this pot offers exceptional reliability and tonal clarity. A trusted choice for builders and players who demand consistent performance in metric-spec instruments.

Features and Benefits:

• Precision CTS build ensures long-lasting durability and consistency
• Smooth and accurate audio taper for natural tone control response
• 500K resistance value, ideal for single-coil pickups
• Metric split shaft design compatible with most metric-sized knobs
• Durable brass shaft with 18 fine splines
• Tight tolerance for consistent electrical performance

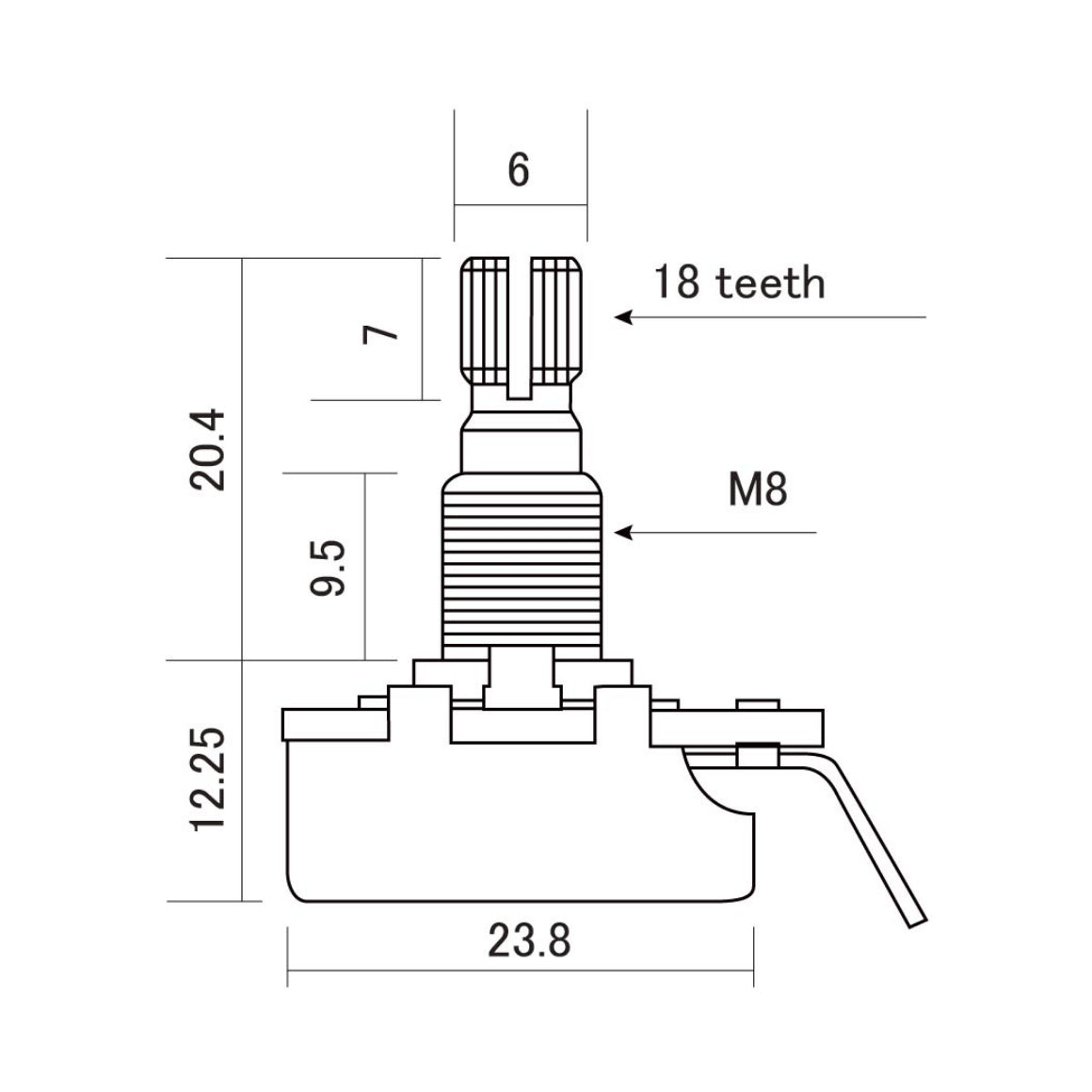

Specifications:

• Resistance: 500K Ω
• Taper: A type (audio taper)
• Thread height: 9.5 mm
• Shaft height: 20.4 mm
• Shaft diameter: 6 mm
• Pot casing diameter: 23.8mm
• Thread: M8 brass thread collar
• Includes nut, dress washer, and lock washer

Compatibility:

This CTS pot is designed for metric-sized control knobs and fits most imported guitars and basses. Ideal for humbucker-equipped guitars or those needing a brighter, more open tone.

Tone Tip:

Use 250K pots with single coils for a warmer, smoother tone. For humbuckers, 500K pots are typically preferred for brighter highs.
