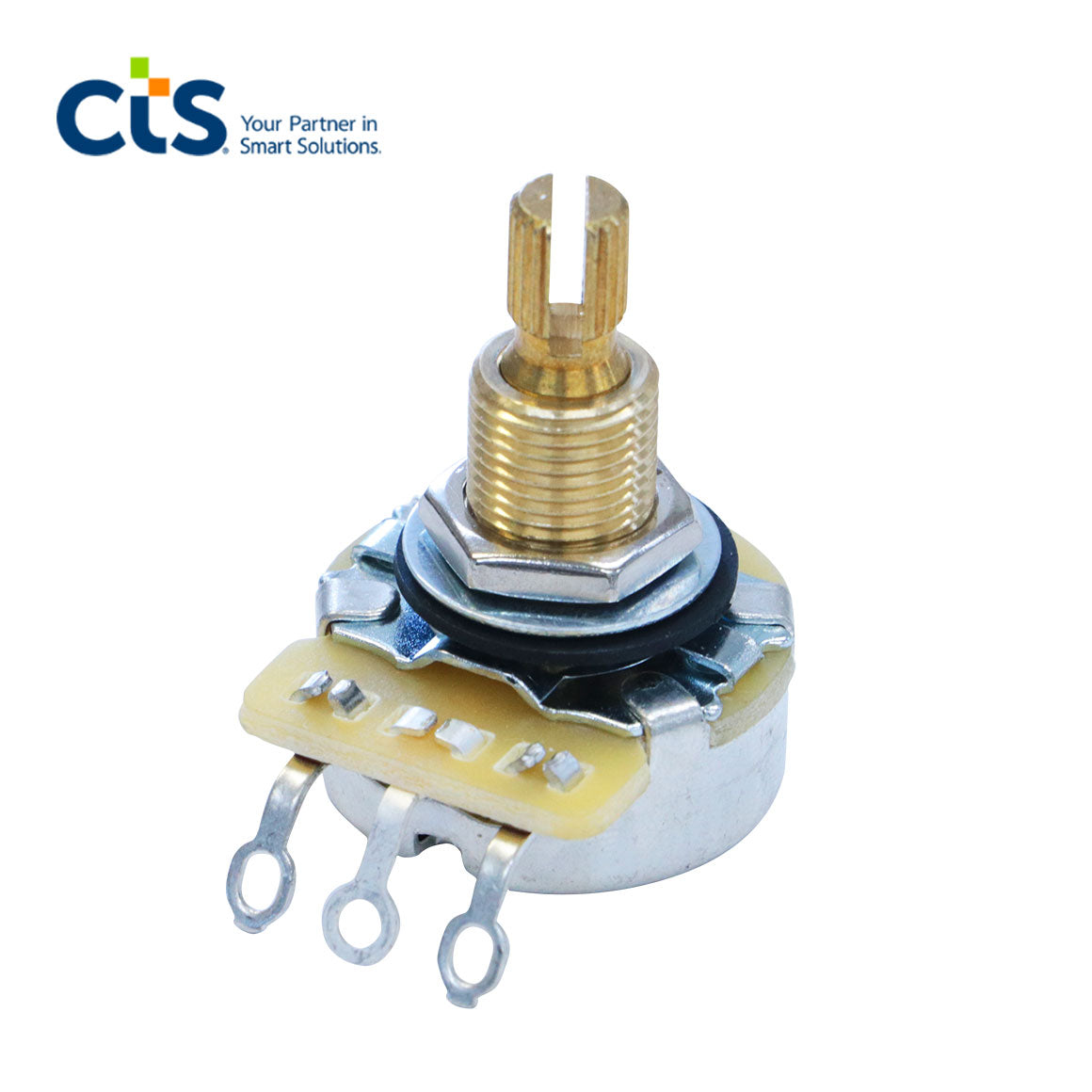

CTS - Precision Audio Taper Pot - Standard Split-Shaft - 25K

Upgrade your guitar with the CTS A25, a high-quality 25K audio taper potentiometer designed specifically for active pickup systems. Built with CTS’s trusted manufacturing quality, this pot delivers smooth, precise control with a consistent and responsive feel.

Features and Benefits:

• Precision CTS is built for long-lasting reliability
• Smooth and accurate audio taper for natural tone control response
• 25K resistance, ideal for active pickups and onboard preamps
• Regular (inch) split shaft design compatible with most USA-sized knobs
• Durable brass split shaft with 24 fine splines
• Tight resistance tolerance for consistent performance

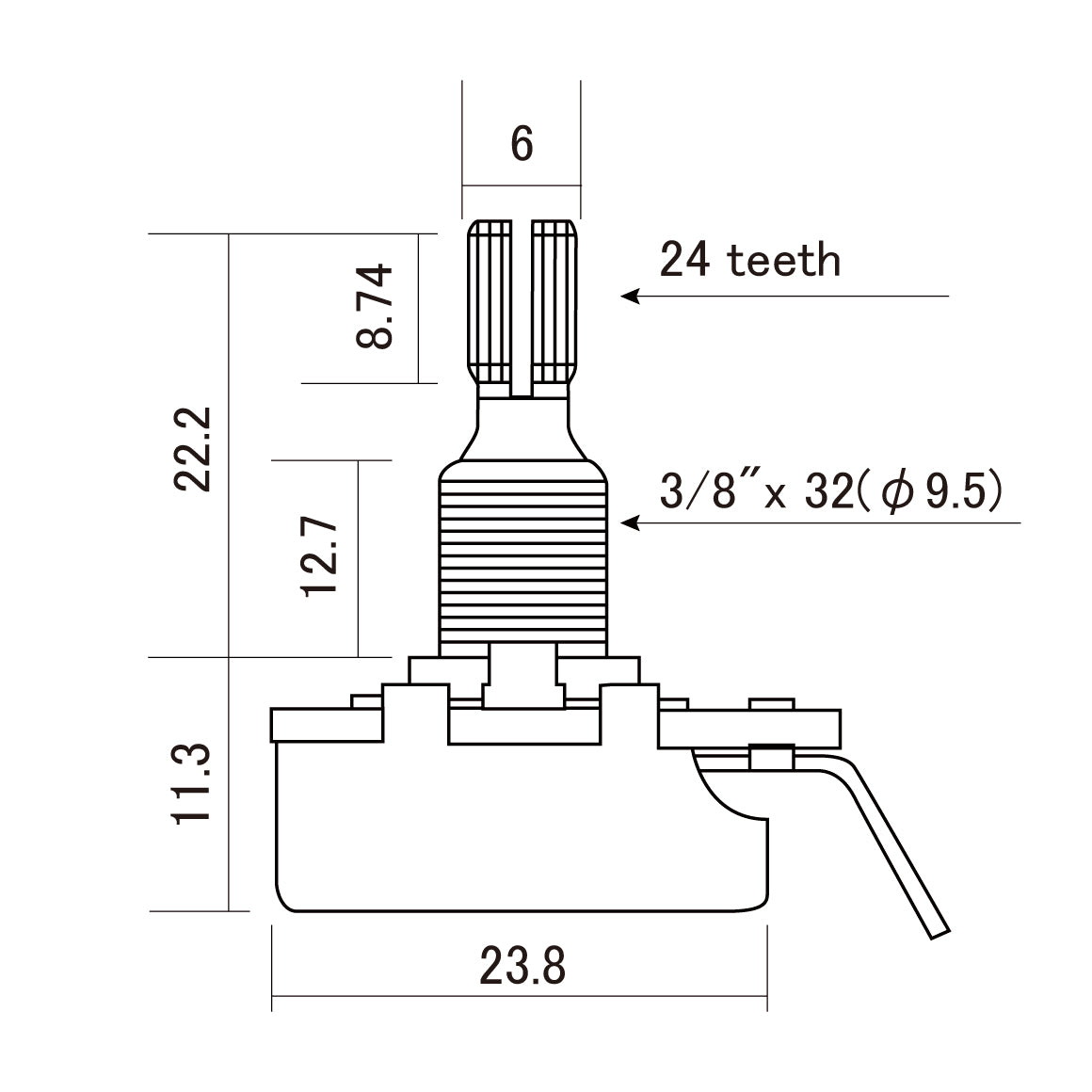

Specifications:

• Resistance: 25K Ω
• Taper: A type (audio taper)
• Thread height: 12.7 mm
•  Shaft height: 22.2 mm
•  Shaft diameter: 6 mm
•  Pot casing diameter: 23.8 mm
• Thread: USA spec 3/8” x 32 brass thread collar
• Includes nut, dress washer, and lock washer

Compatibility:

Designed for inch-sized control knobs. Suitable for guitars equipped with active pickups such as EMG®, Fishman Fluence®, and other onboard preamp systems.

Tone Tip:

25K pots are optimised for active circuits, providing a smooth and usable sweep without excessive brightness or harshness that higher value pots may introduce.
