Gotoh - 510T-FE1-42

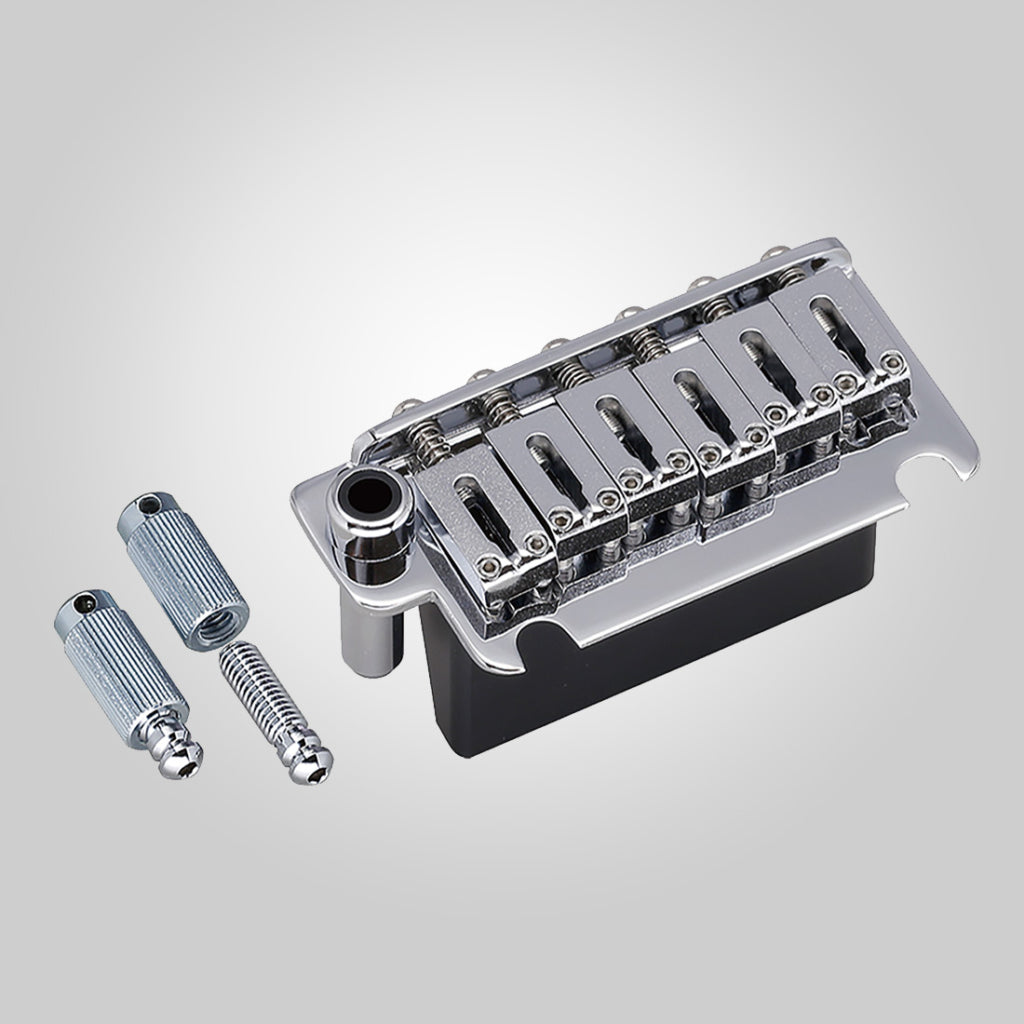

Gotoh - 510T-FE1 - FST Mechanism Tremolo Bridge
Gotoh - 510T-FE1 - FST Mechanism Tremolo Bridge
Couldn't load pickup availability
The Gotoh 510T-FE1 is a premium two-point tremolo system, precision-engineered in Japan for modern guitarists seeking smooth operation and superior tuning stability. Part of Gotoh’s flagship 510 series, this bridge combines high-quality materials with innovative design features to enhance your instrument’s performance.
The 510T-FE1 is equipped with solid steel block saddles and a zinc tremolo block, delivering crisp response and excellent sustain. The FST (Free Swing Tremolo) system ensures that strings pass through the block without binding, promoting better tuning stability and reducing wear. Additionally, Gotoh’s patented Stud Lock system secures the mounting studs, enhancing vibration transfer and tuning stability.
Key Features:
- Genuine Gotoh product - Made in Japan
- Steel baseplate with solid steel saddles
- FST system for improved tuning stability
- Patented Stud Lock mounting system
- Adjustable tremolo arm tension
- Includes tremolo arm, springs, spring claw, mounting studs, and screws
Specifications
| Specification | Imperial | Metric |
|---|---|---|
| String Spread (E to E) | 2-1/8” | 54mm |
| String Spacing | 0.425" | 10.8mm |
| Baseplate Width | 3.29” | 83.5mm |
| Tremolo Block Width | 2.52" | 64mm |
| Tremolo Block Height | 1.65" | 42mm |
| Stud Insert Diameter | 0.364" | 10mm |
| Stud Insert Depth | 0.89" | 22.5mm |
| Stud Thread Size | 0.24" (6mm thread) | M6 |
| Arm Hole Diameter | 0.217" | 5.5mm |

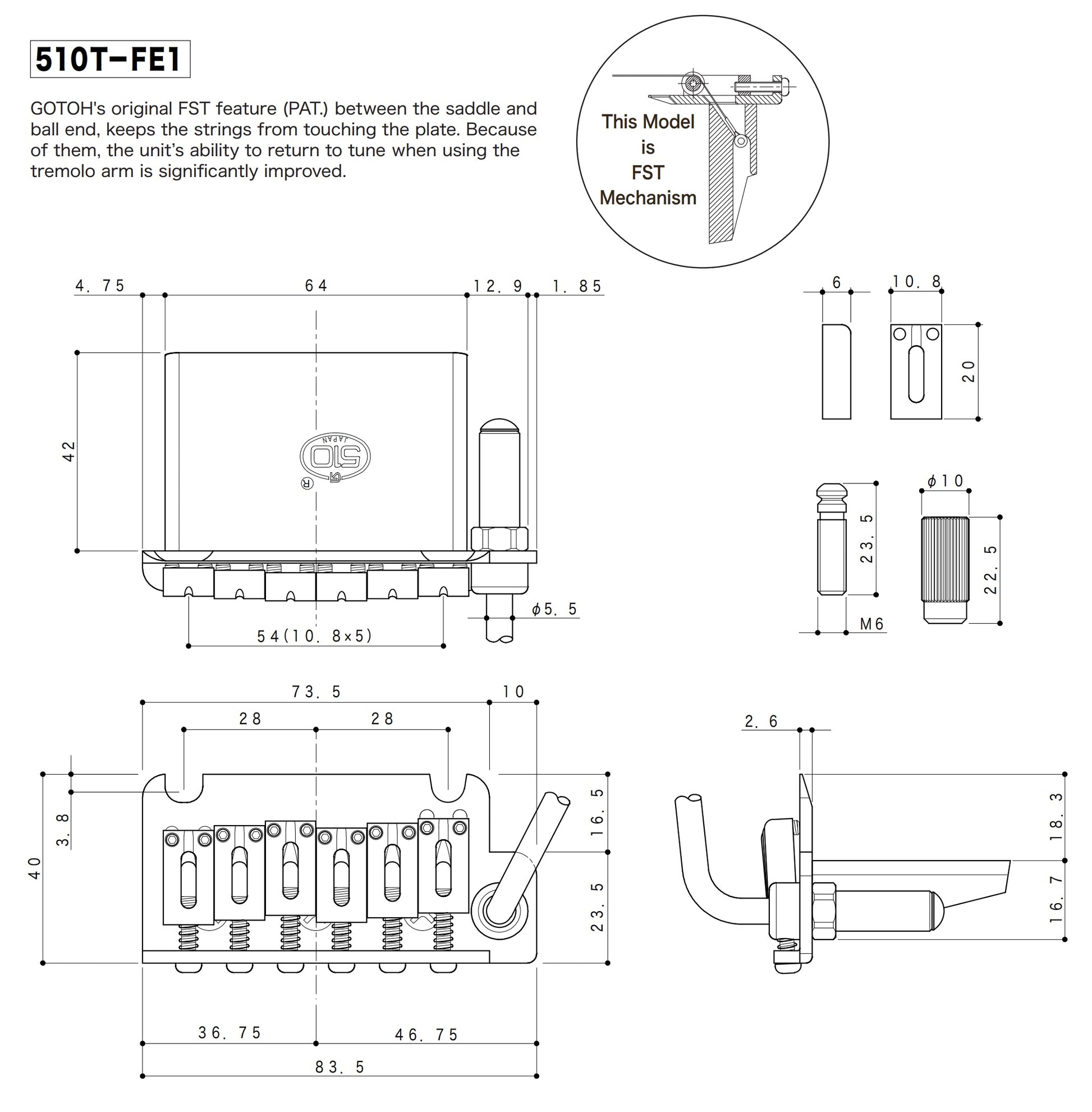

Dimension
Download Dimension PDF
