Gotoh - 510TS-FE1 - Steel Block Tremolo Bridge
Gotoh - 510TS-FE1 - Steel Block Tremolo Bridge
Couldn't load pickup availability
The Gotoh 510TS-FE1 is a premium two-point tremolo system, precision-engineered in Japan.

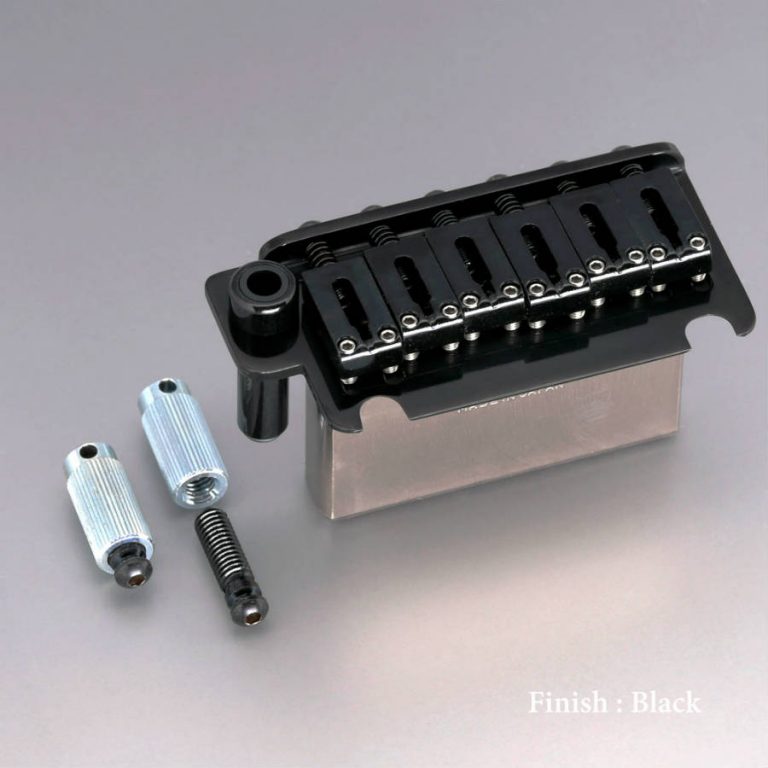

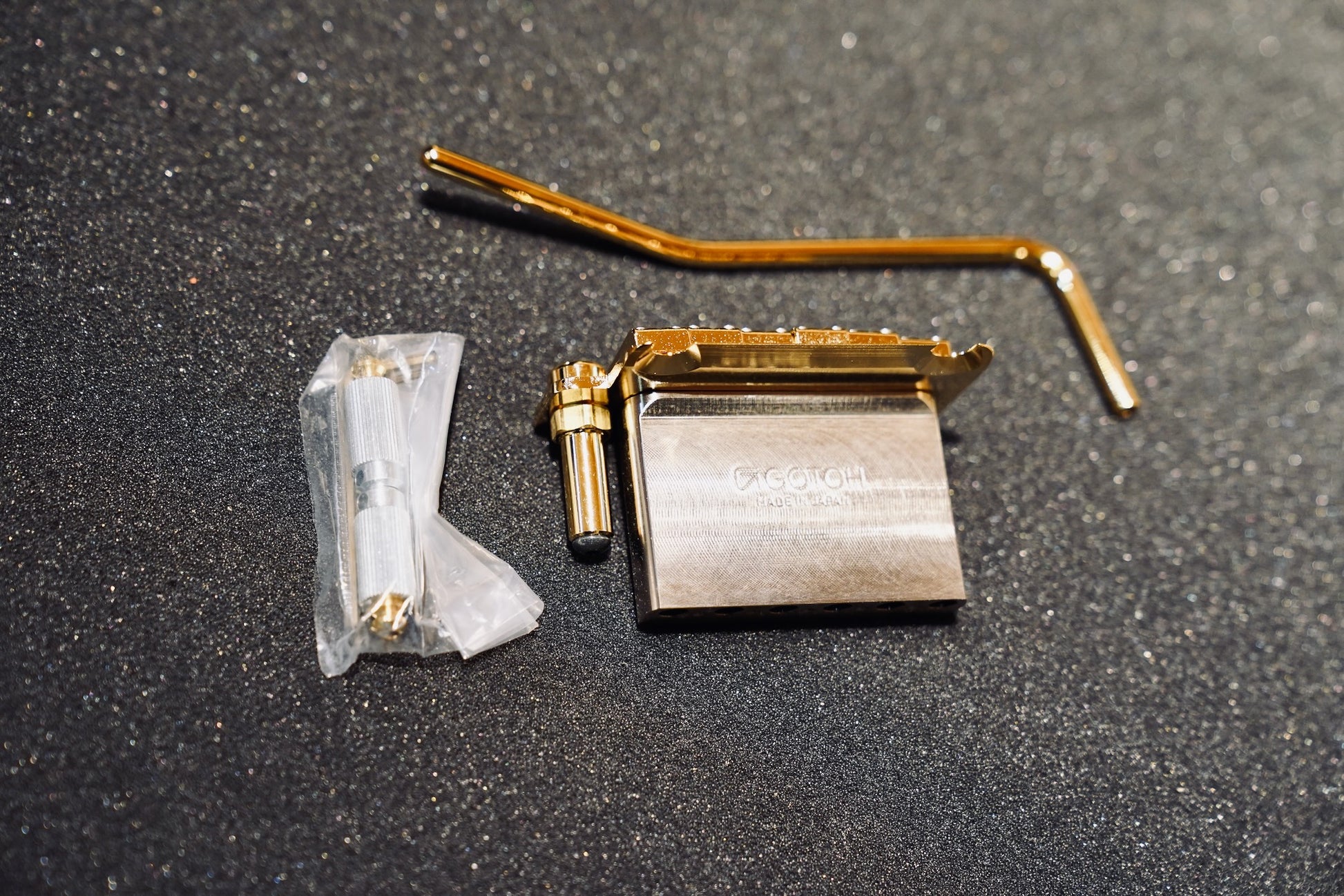

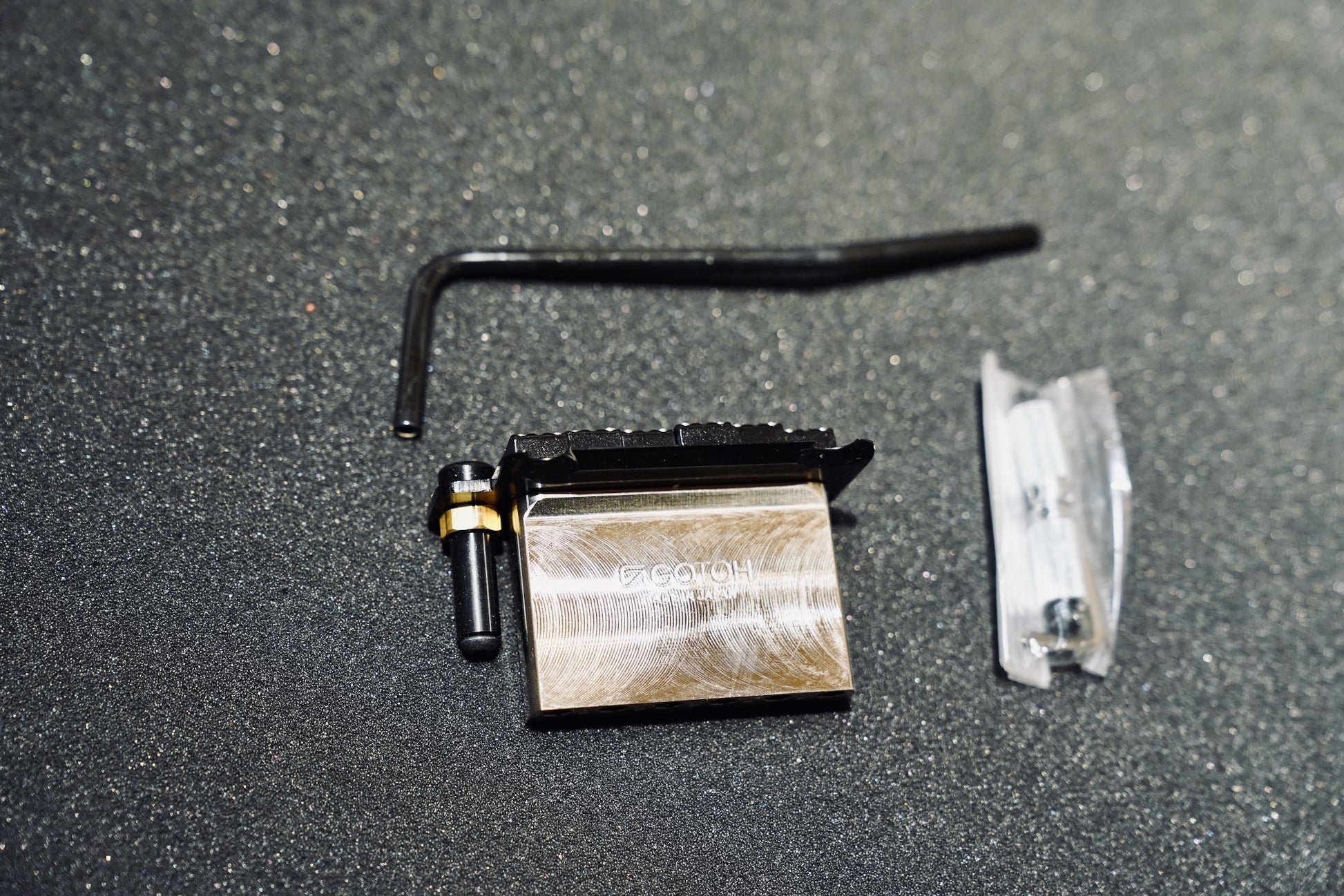

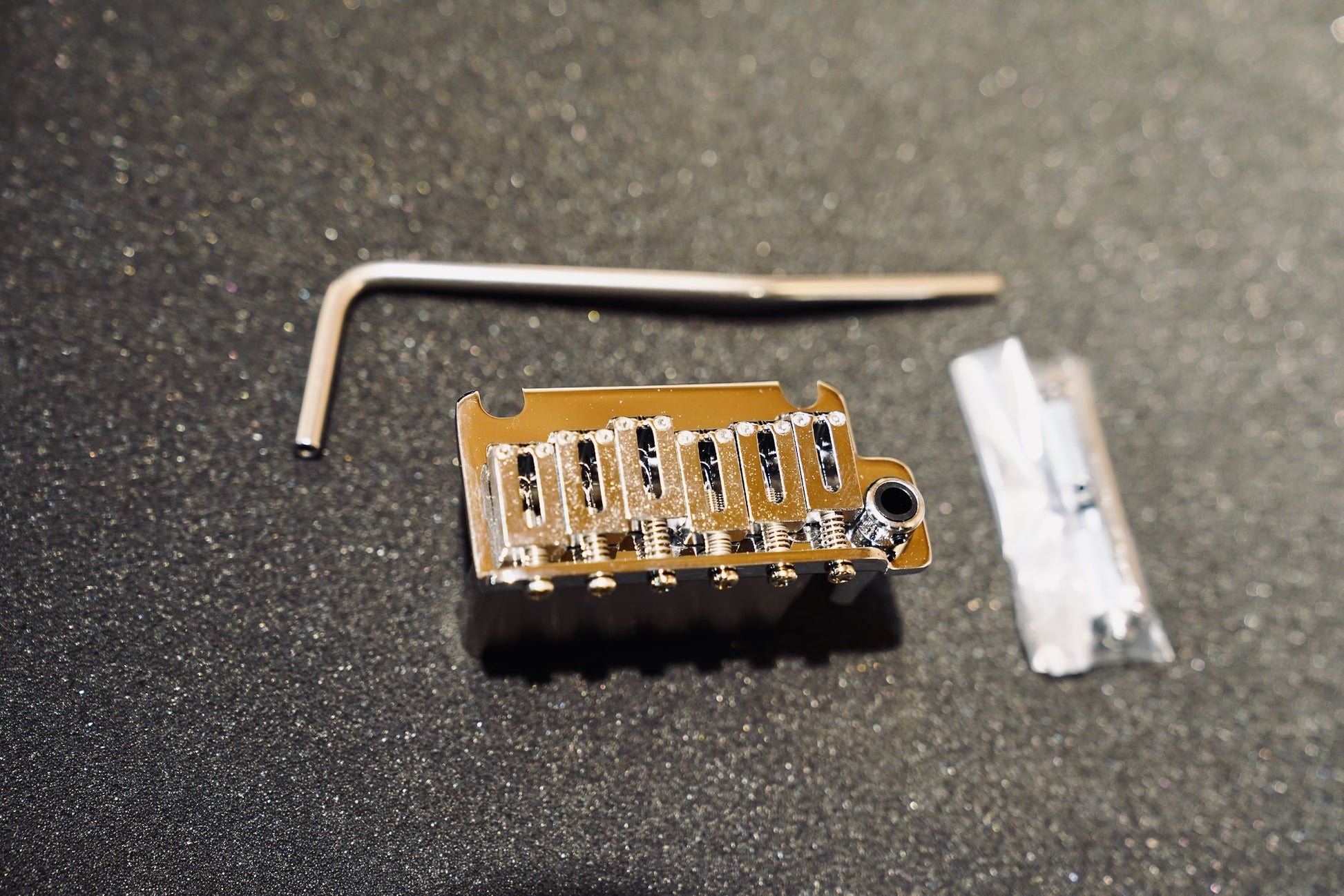

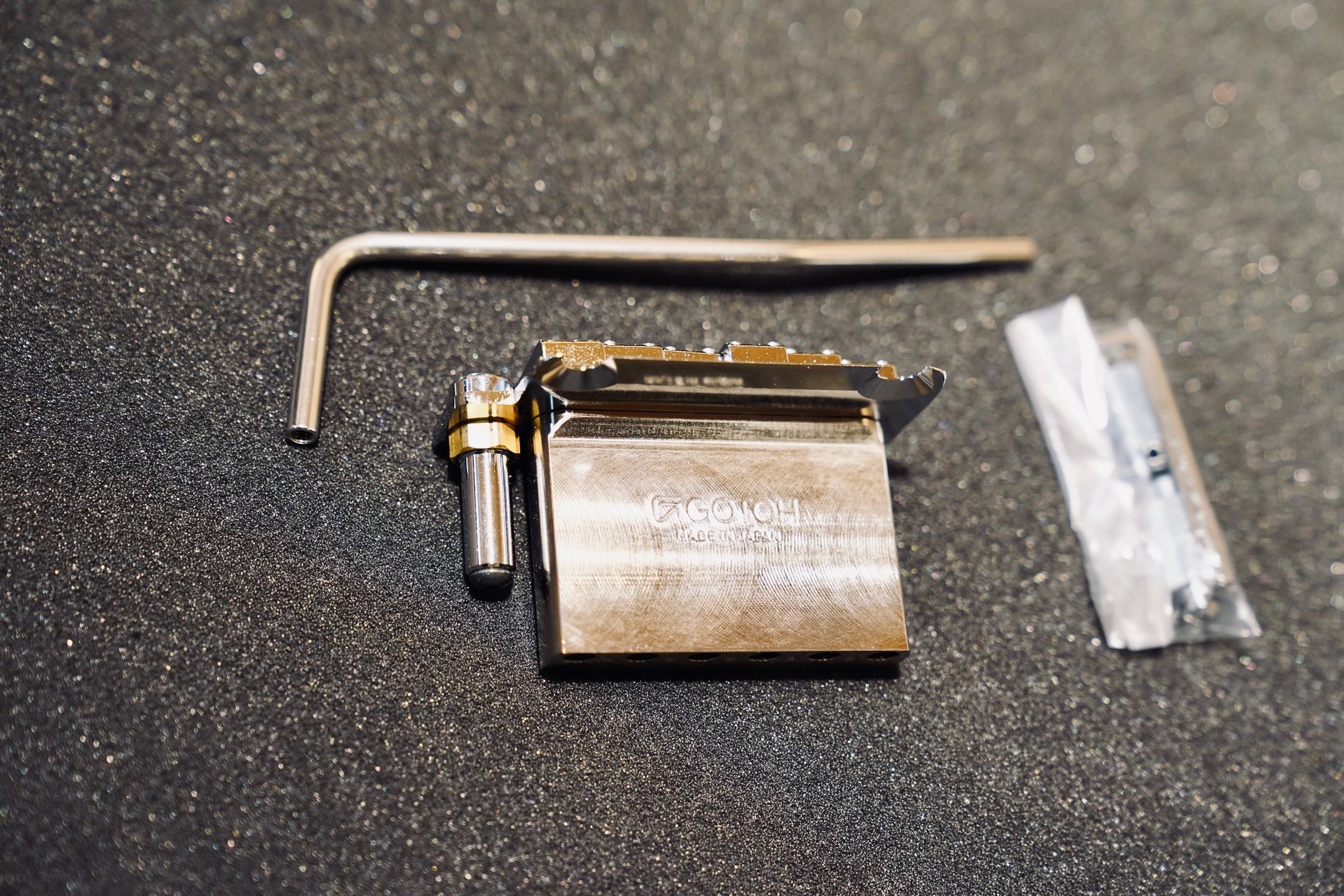

Finished in chrome, black or gold, the 510TS-FE1 features solid steel saddles and a steel tremolo block that delivers a crisp response and excellent sustain. The high-quality steel block enhances tuning stability and produces a clear, articulate tone with piano-like highs and lows. Gotoh’s patented Stud Lock system secures the mounting studs for improved vibration transfer and overall stability.
Key Features:
- Genuine Gotoh product - Made in Japan
- Solid steel baseplate with solid steel saddles
- Solid steel block improves sustain and piano-like tonality
- Patented Stud Lock mounting system
- Adjustable tremolo arm tension

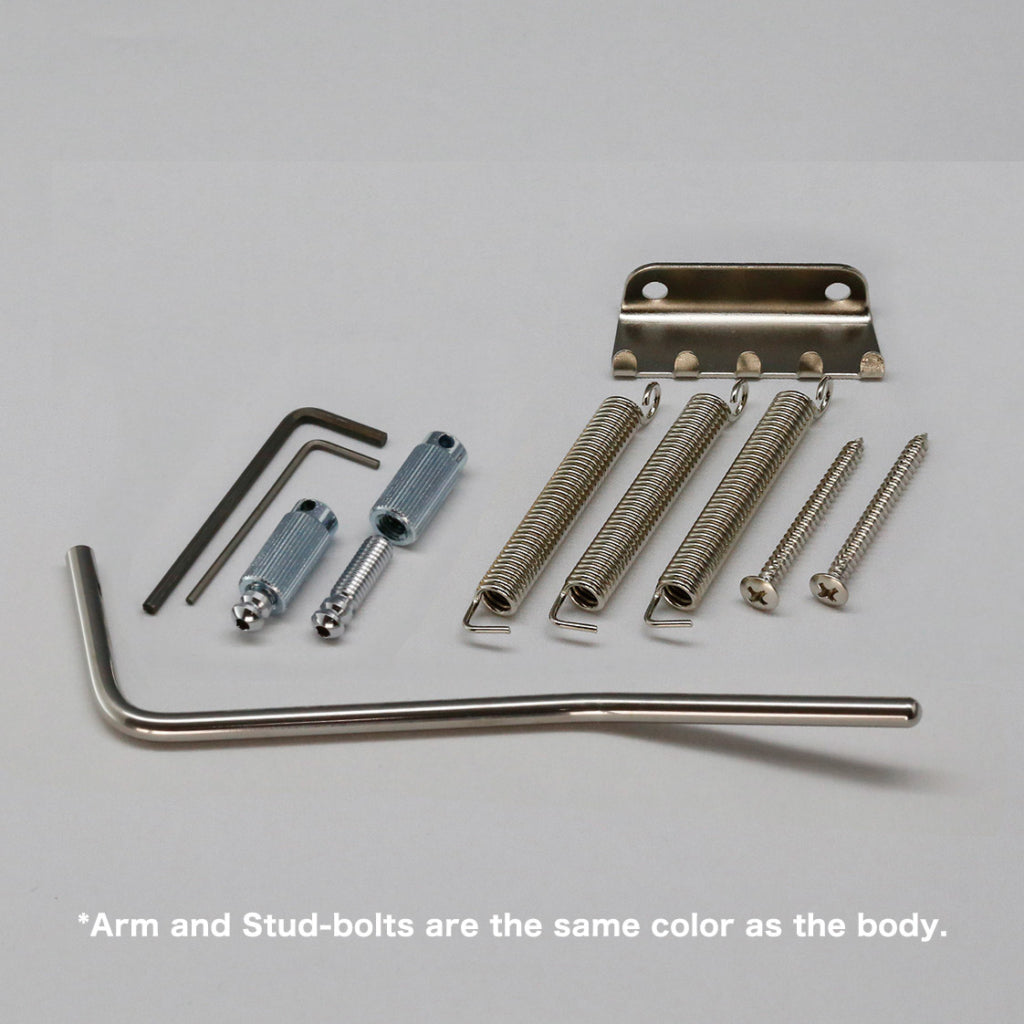

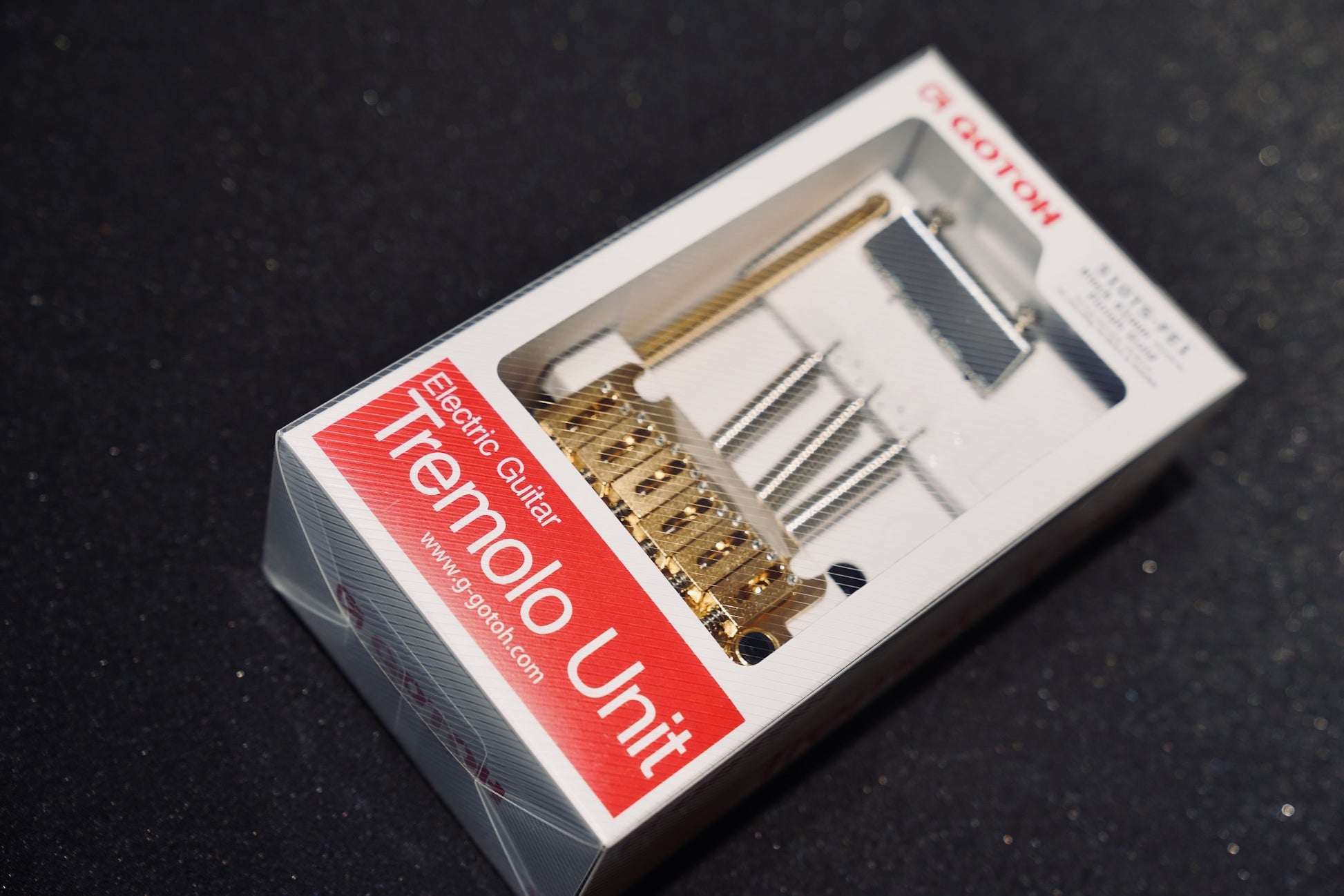

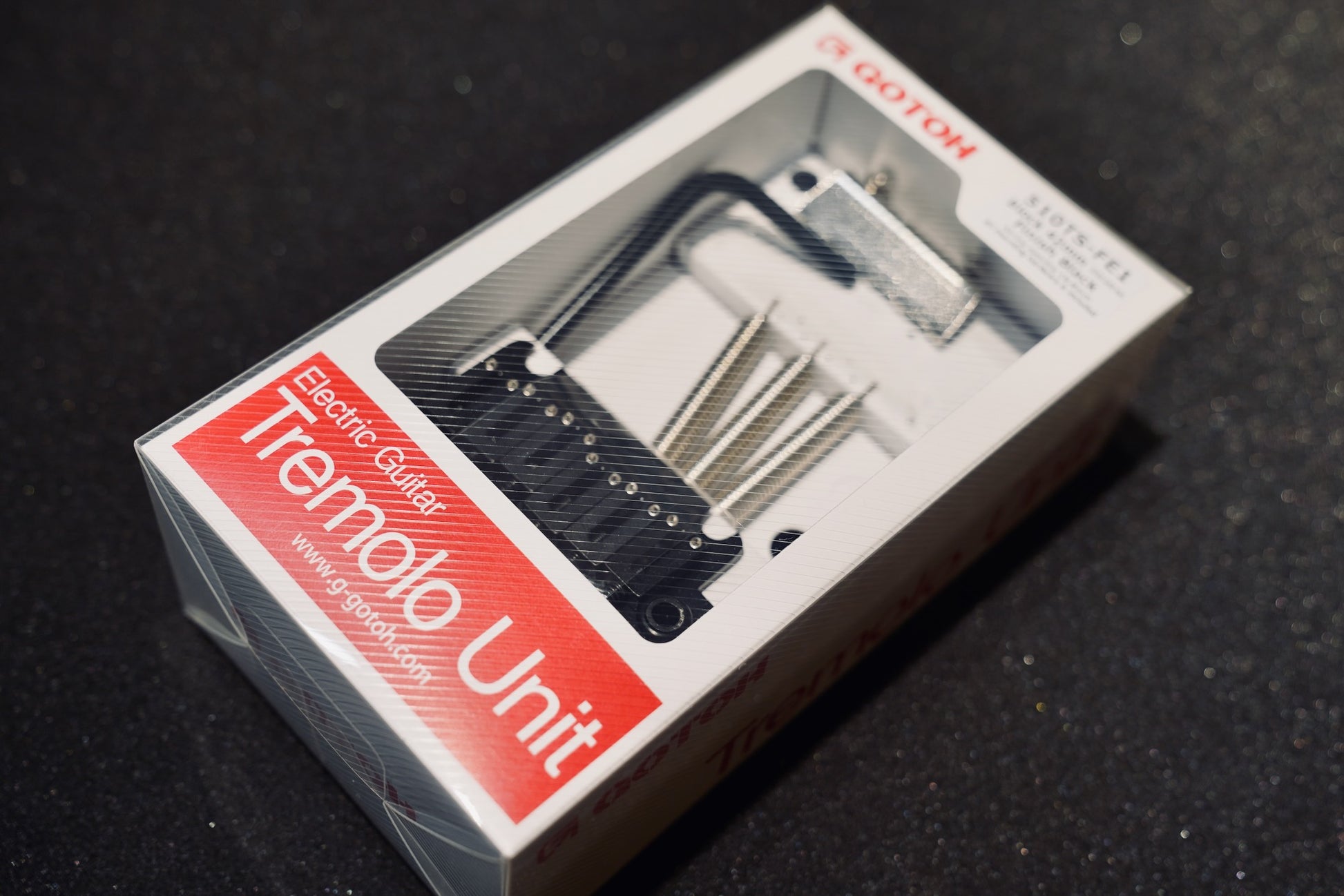

- Includes tremolo arm, springs, spring claw, mounting studs, and screws
Specification | Imperial | Metric |
---|---|---|
String Spread (E to E) | 2-1/8” | 54mm |
String Spacing | 0.425" | 10.8mm |
Baseplate Width | 3.29” | 83.5mm |
Tremolo Block Width | 2.52" | 64mm |
Tremolo Block Height | 1.65" | 42mm |
Stud Insert Diameter | 0.364" | 10mm |
Stud Insert Depth | 0.89" | 22.5mm |
Stud Thread Size | 0.24" (6mm thread) | M6 |
Arm Hole Diameter | 0.217" | 5.5mm |

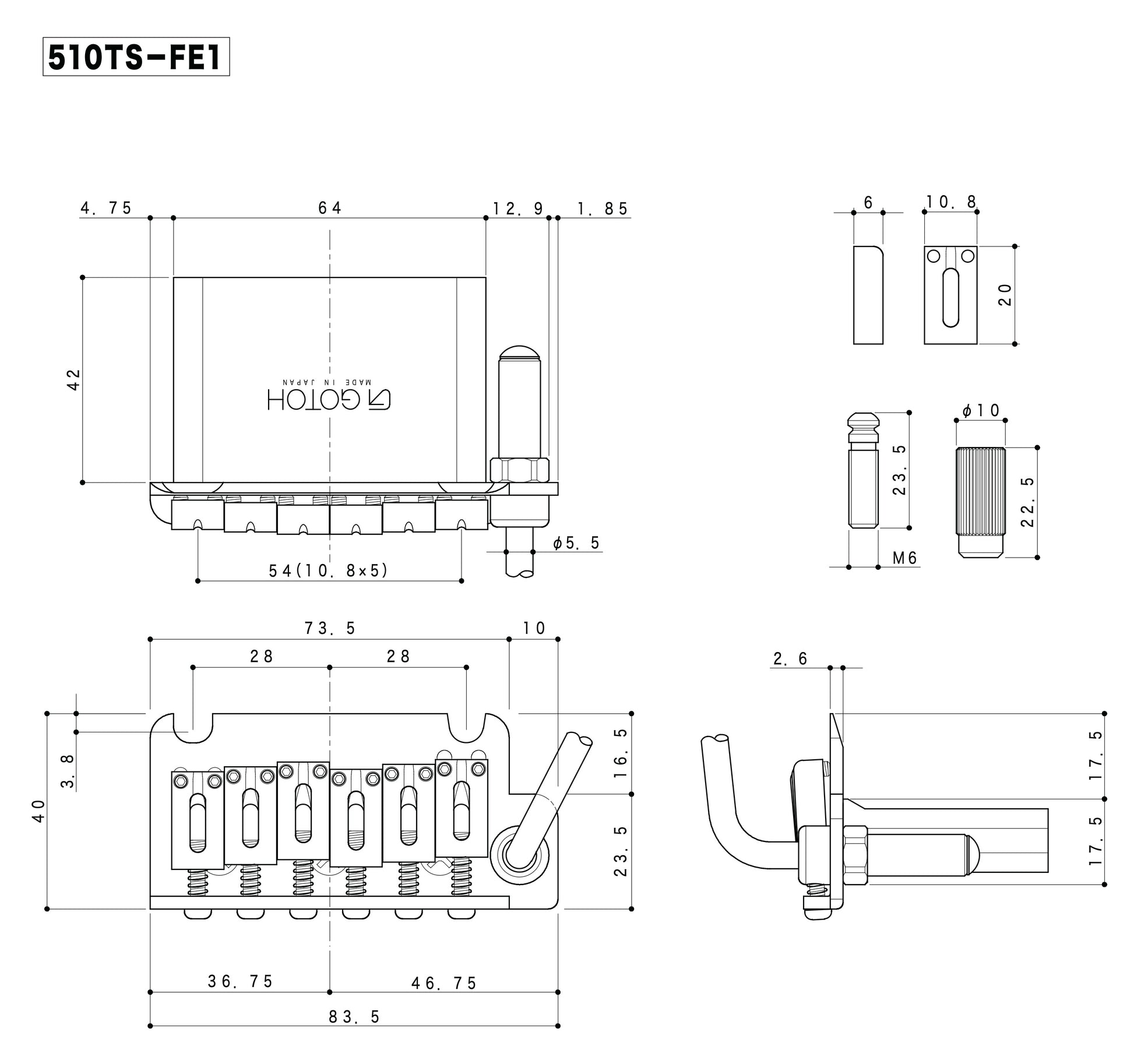

Dimension
