The Gotoh 510TS-SF2 is a high-quality, vintage-style 6-screw tremolo bridge, meticulously crafted in Japan. Finished in chrome, black or gold. It features a solid steel tremolo block and steel metal sheet saddles, delivering enhanced sustain and a clear, articulate tone. The bridge is designed to fit guitars with a 56mm (2-7/32”) mounting screw spacing and offers a 10.8mm string spacing, making it a direct replacement for many vintage-spec Stratocaster®-style guitars.
Key Features:
- Genuine Gotoh product - Made in Japan
- Solid steel baseplate with solid steel saddles
- Solid steel block improves sustain and piano-like tonality
- Adjustable tremolo arm tension
- Includes tremolo arm, springs, spring claw and screws
Specification
| Specification | Imperial | Metric |
|---|---|---|
| String Spread (E to E) | 2-1/8” | 54mm |
| String Spacing | 0.425" | 10.8mm |
| Baseplate Width | 3.29” | 83.5mm |
| Tremolo Block Width | 2.52" | 64mm |
| Tremolo Block Height | 1.65" | 42mm |
| Mounting Hole Spacing | 2-7/32" | 56mm |
| Mounting Screw Diameter | 9/64" | 3.5mm |
| Mounting Screw Length | 0.984" | 25mm |
| Arm Hole Diameter | 0.217" | 5.5mm |

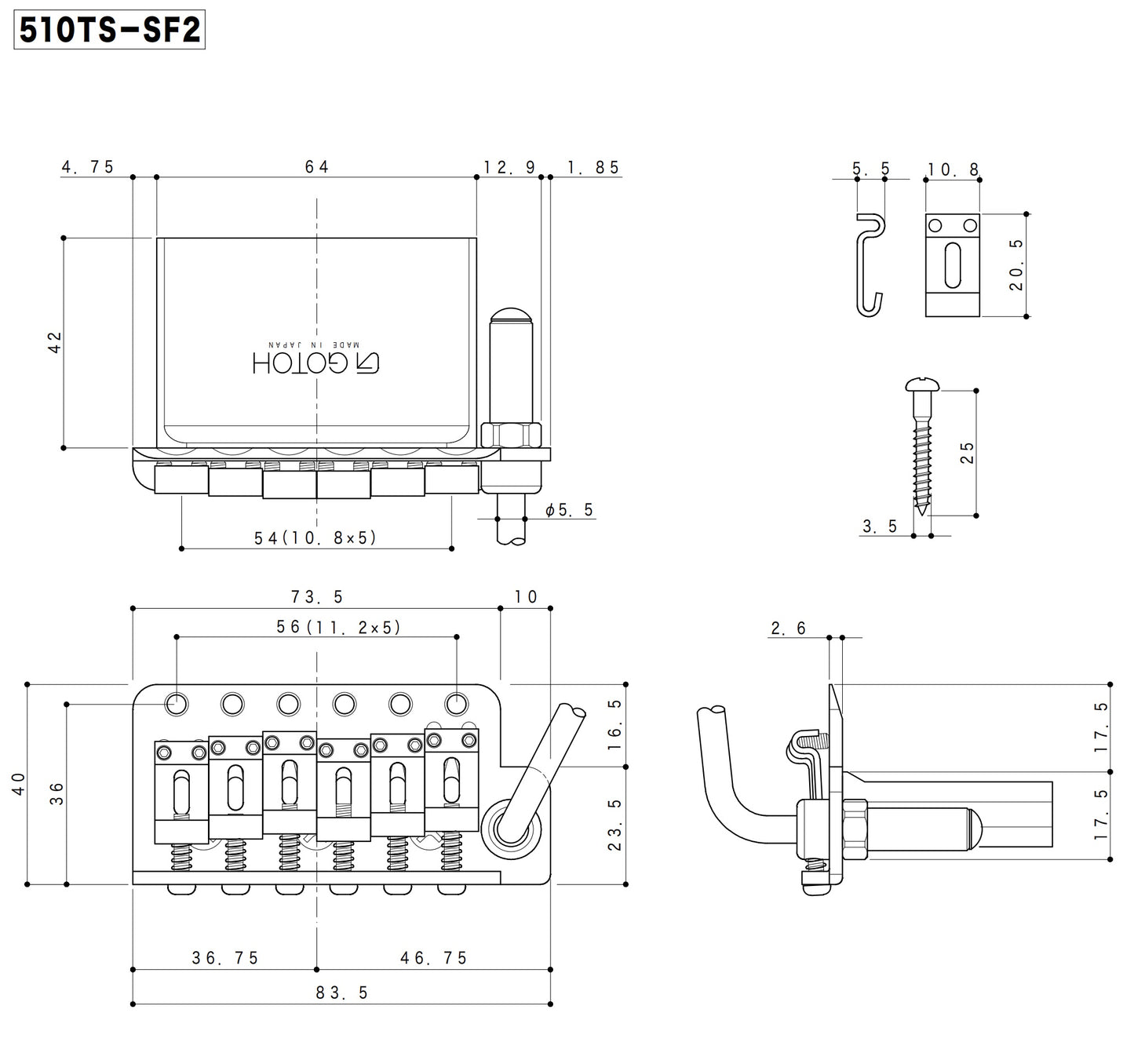

Dimension
