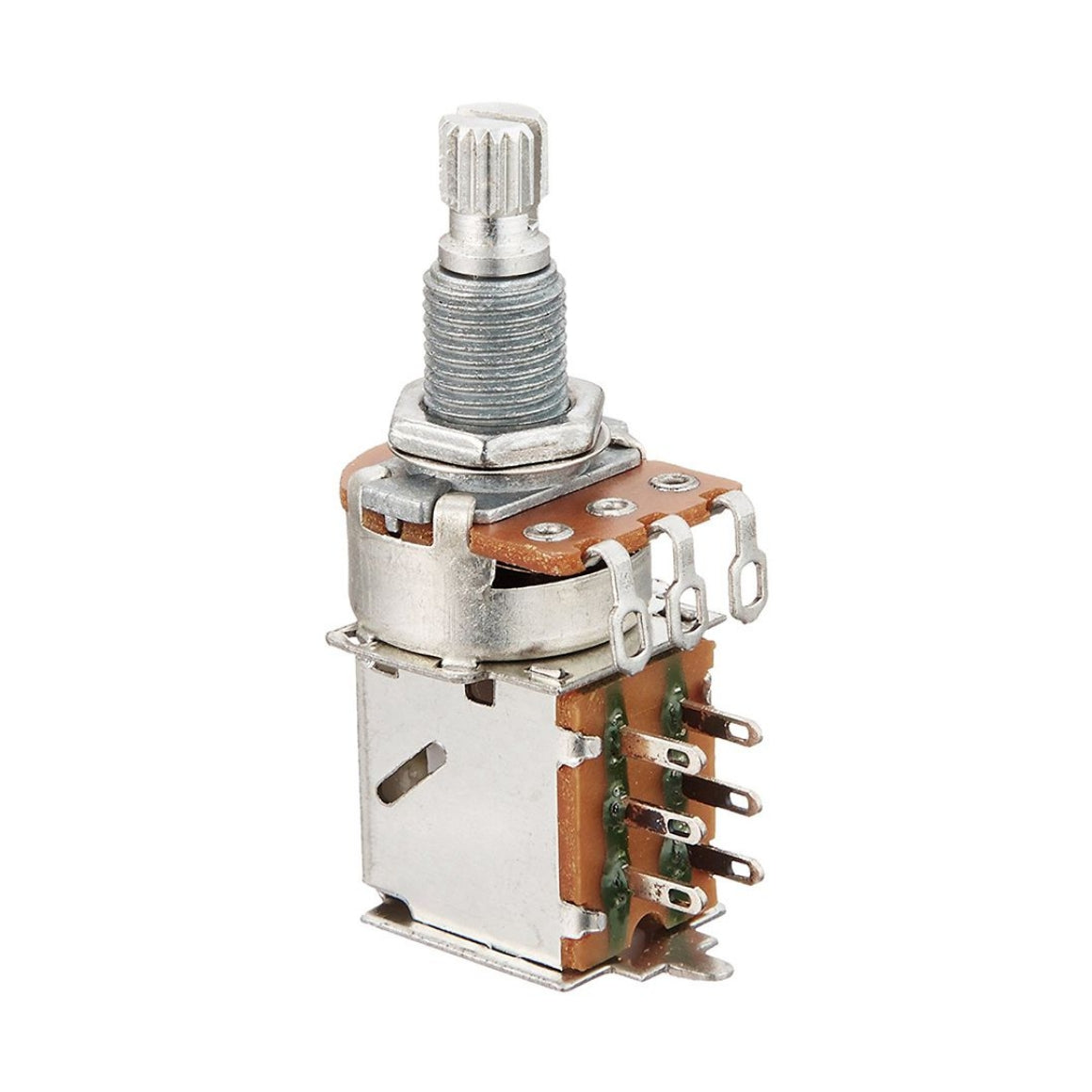

Hosco - Audio Taper Pot Push Pull - Split-Shaft - 500K

Enhance the versatility of your guitar with the Hosco 500K Audio Taper Push-Pull Potentiometer. This high-quality control lets you split coils, switch pickups, or activate custom wiring options while maintaining smooth and reliable tone control. Perfect for those who want extra functionality without sacrificing feel or performance.

Features and Benefits:

• Reliable Hosco build quality for consistent, long-lasting performance
• Smooth and responsive audio taper for natural tone control
• Push-pull DPDT switch allows coil-splitting or custom wiring mods
• 500K resistance value, ideal for single-coil pickups
• Standard M8 threaded collar and 6mm split shaft (18 splines)
• Durable 24mm casing fits most control cavities
• Includes nut and washer for easy installation
• Premium product from Japan

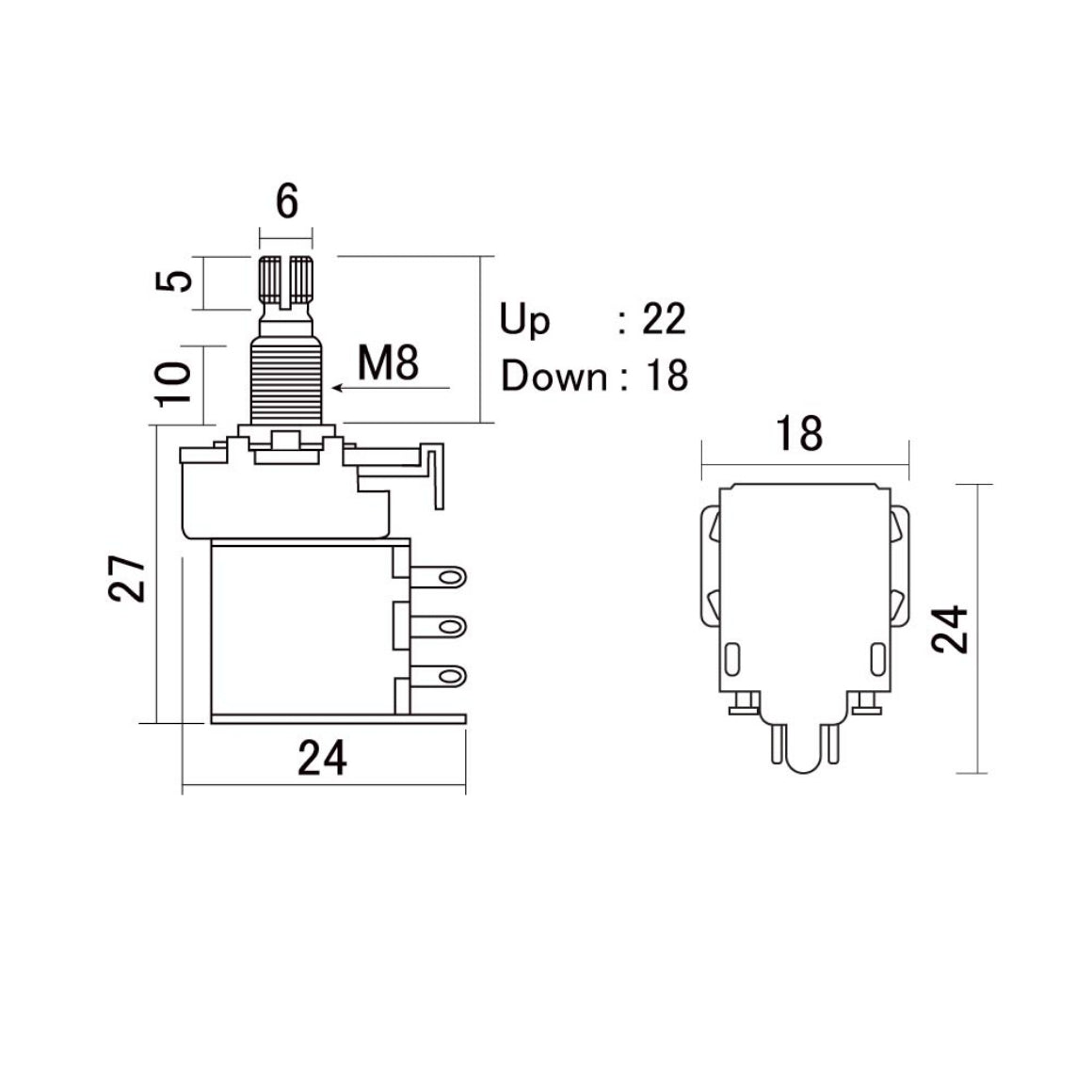

Specifications:

• Resistance: 500K Ω
• Taper: A type (audio taper)
• Thread height: 10 mm
• Shaft height: 18 mm
• Shaft diameter: 6 mm (18 splines)
• Pot casing diameter: 16.3 mm
• Thread: M8
• Includes 1 nut and 1 washer

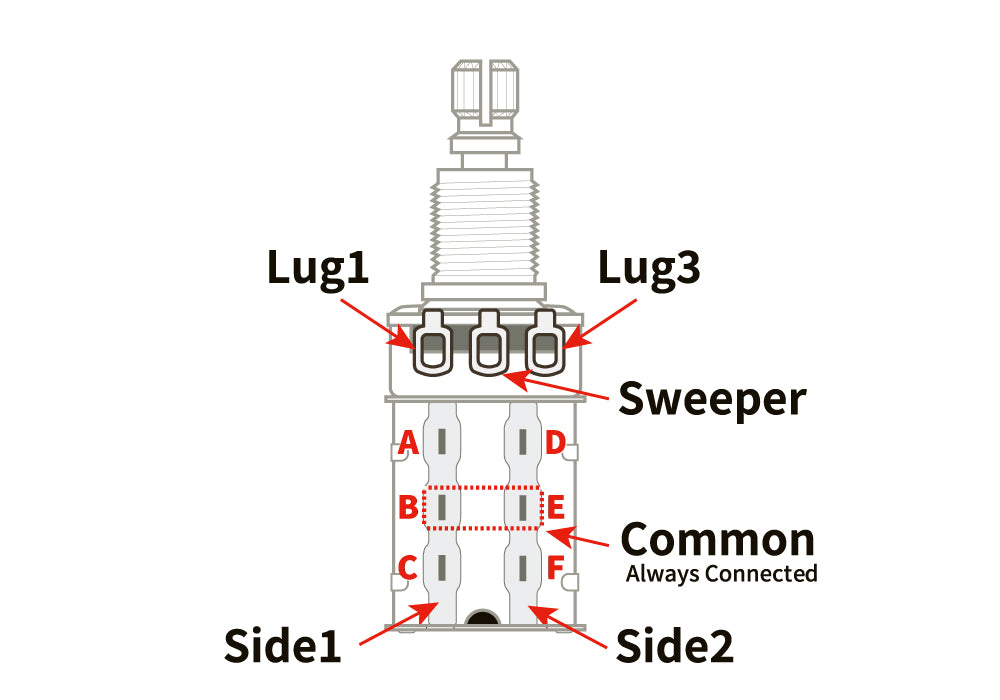

Switching Function:

When pushed down:

• B connects to C
• E connects to F

When pulled up:

• B connects to A
• E connects to D

B and E remain connected throughout the operation.

Compatibility:

Perfect for guitars equipped with humbucker pickups or players who want flexible tone control options such as coil split, phase reversal, or series/parallel wiring.

Tone Tip:

Use 250K pots with single coils for a warmer, smoother tone. For humbuckers, 500K pots are typically preferred for brighter highs.
