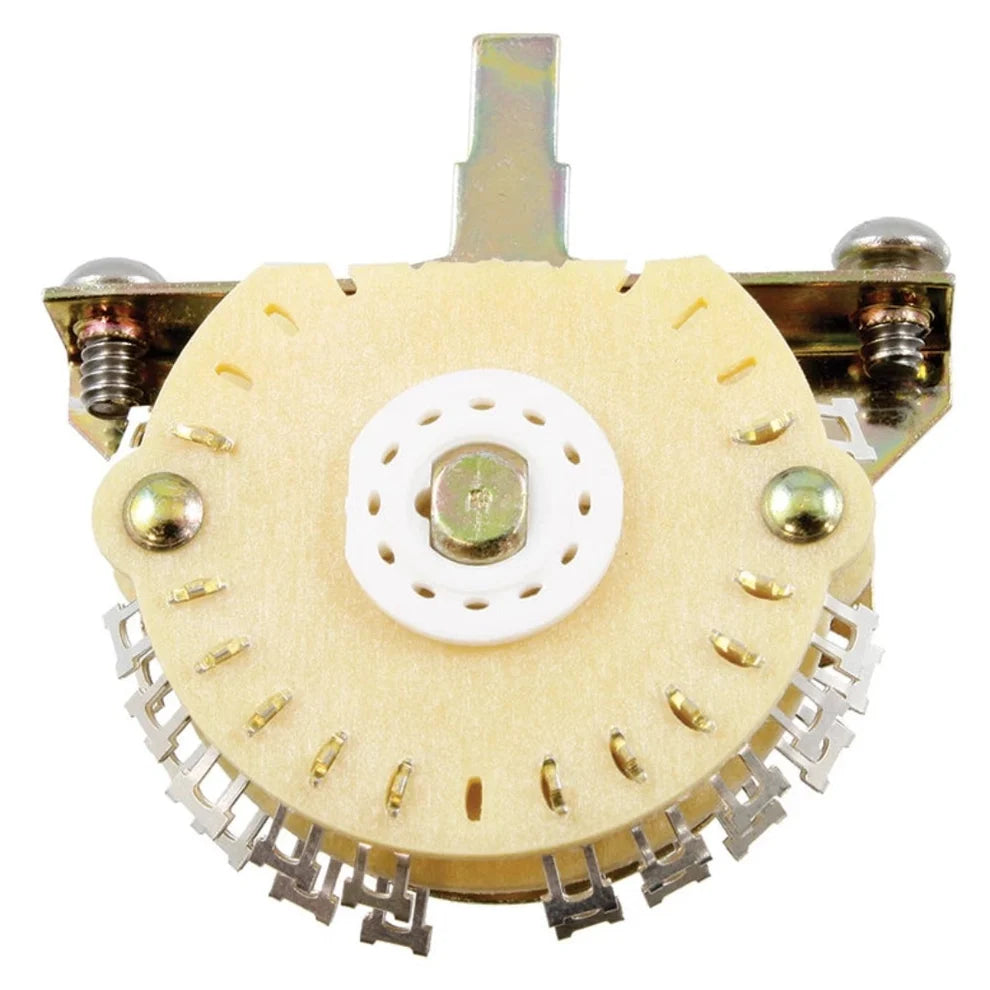

Oak Grigsby - 4-Pole 5-Way Super Switch - Inward Slug

The Oak Grigsby Super Switch expands a standard 5-way blade selector into four independent poles, making it ideal for advanced pickup combinations, coil splits, series/parallel wiring and other custom switching schemes. This inward slug version consumes less cavity space, best for the complex wiring.

Specifications

• Five positions and four independent poles
• 24 solder lugs: six per pole
• Manufacturer model: 51970
• Approximate body depth: 1-3/8 inches (34.9 mm)
• Mounting-screw spacing: 1-5/8 inches (41.3 mm), centre to centre
• Recommended pickguard slot: 1/16 × 1-1/16 inches (1.6 × 27.0 mm)
• Lever stem: approximately 0.050 × 0.190 inches (1.27 × 4.83 mm)
• Mounting screws included
• Switch tip sold separately
• Sold individually

The deeper body requires more cavity clearance than a conventional 5-way switch. Confirm dimensions before installation.
