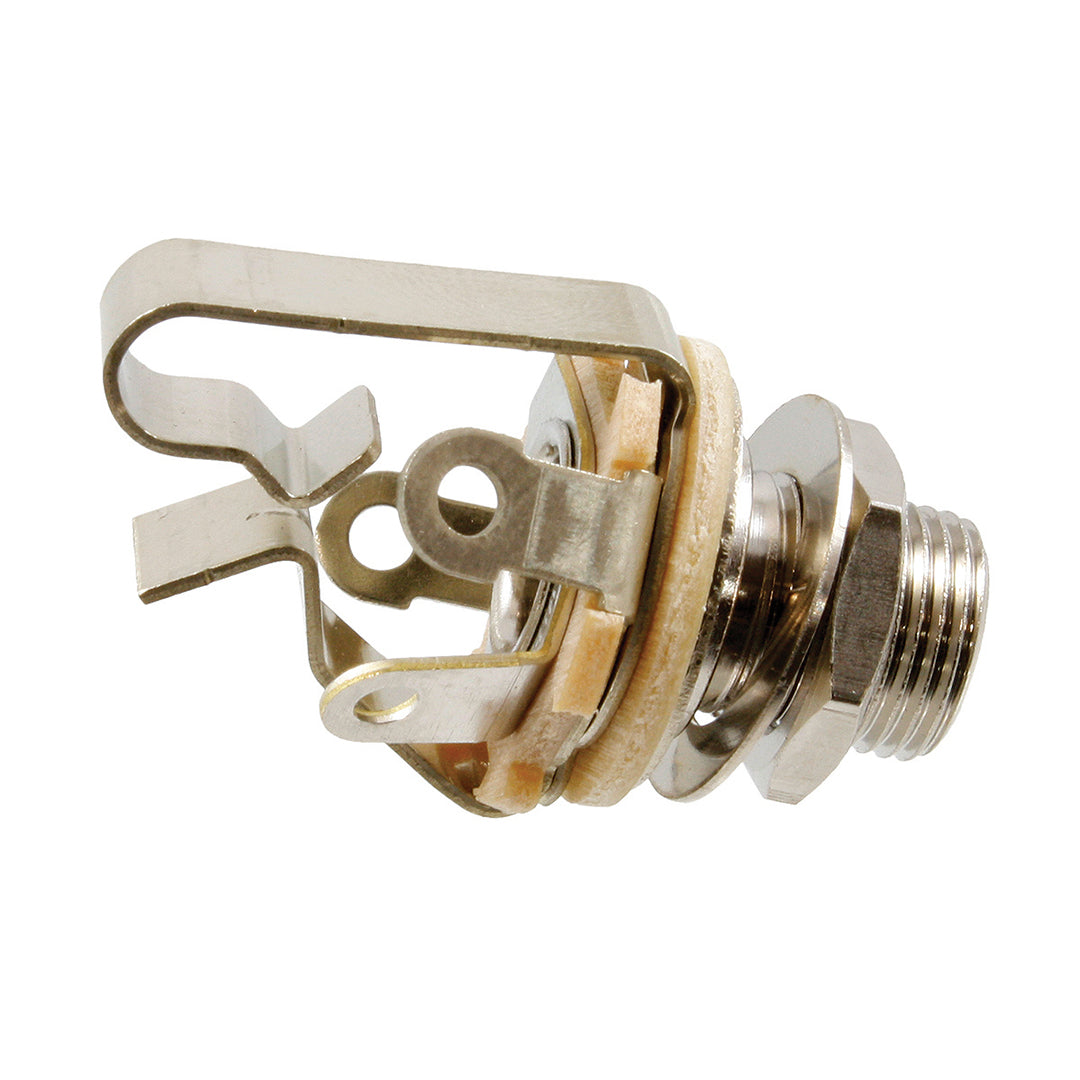

Switchcraft - #2T11 Dual-Contact 1/4" Output Jack Socket

The Switchcraft #2T11 is a heavy-duty 1/4-inch mono jack with two parallel tip contacts. The dual-contact design increases the contact area on the plug tip for a secure, reliable signal connection.

Specifications

• Connection: 1/4-inch mono (TS)
• Contact design: two tip contacts plus sleeve contact
• Mounting-hole diameter: 3/8 inch (9.53 mm)
• Bushing thread: 3/8-32
• Threaded bushing length: 1/4 inch (6.35 mm)
• Open-frame construction with solder terminals
• Includes mounting nut and washer
• Manufacturer model: 2T11
• Sold individually

This is a dual-contact mono jack, not a stereo or switching jack. Check cavity clearance before installation.
